Caja de fusibles en el motor
| N° | A | Descripción | |
|---|---|---|---|
| - | Herramienta para la extracción de los fusibles. | ||
| 1 | 60A | (ABS) Sistema de frenos antibloqueo | |
| 2 | 40A | CRANK | |
| 3 | 60A | (BAT #3) Sistema de carga | |
| 4 | 60A | (BAT #2) Sistema de carga | |
| 5 | 30A | (IGN 1) Encendido | |
| 6 | 25A | (COOL FAN 1) Electroventilador de enfriamiento | |
| 7 | 60A | (BAT #1) Sistema de carga | |
| 8 | 60A | (IGN 2) Encendido | |
| 9 | (COOL FAN 2) Electroventilador de enfriamiento | ||
| 10 | (COOL FAN 3) Electroventilador de enfriamiento | ||
| 11 | CRANK | ||
| 12 | (COOL FAN) Electroventilador de enfriamiento | ||
| 13 | (IGN MAIN) Encendido | ||
| 14 | AIR PUMP | ||
| 15 | (A/C CLU) Aire acondicionado | ||
| 16 | (HORN) Bocina | ||
| 17 | (FOG LP) Luces antiniebla | ||
| 18 | F/PMP SPD CONT | ||
| 20 | 30A | AIR PUMP | |
| 21 | 10A | (GEN) Sistema de carga | |
| 22 | 10A | (ECM) Unidad de control del motor | |
| 23 | 15A | (A/C CLU) Aire acondicionado | |
| 24 | 15A | (COOL FAN 2) Electroventilador de enfriamiento | |
| 25 | 15A | ELEK IGN | |
| 26 | 10A | (TRANS) Control de la caja automática | |
| 27 | 15A | (HORN) Bocina | |
| 28 | 15A | F/INJR | |
| 29 | 15A | OXY SEN | |
| 30 | 10A | ENG EMIS | |
| 31 | 10A | (FOG LP) Luces antiniebla | |
| 32 | 15A | HDLP R | |
| 33 | 7.5A | R/CMPT REL | |
| 34 | 20A | LP PARK | |
| 35 | 15A | (F/PMP) Bomba de combustible | |
| 36 | 15A | HDLR L | |
| 37 | (SPARE) Fusible de respuesto | ||
| 38 | (SPARE) Fusible de respuesto | ||
| 39 | (SPARE) Fusible de respuesto |

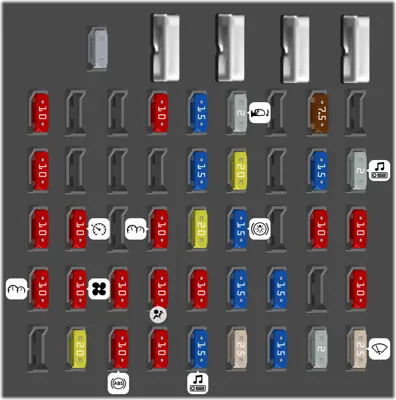

Caja de fusibles interior
| N° | A | Descripción | |
|---|---|---|---|
| - | TIRE RESET | ||
| - | PWR WINDOWS, PWR SUNROOF | ||
| - | (REAR DEFOG) Desempañador trasero | ||
| - | (POWER SEATS) Asiento de ajuste eléctrico | ||
| 1 | 10A | PARK LOCK | |
| 4 | 10A | PCM, BCM, WH RELAY | |
| 5 | 15A | RADIO PREM. SOUND | |
| 6 | 2A | (POWER MIRRORS) Espejos eléctricos | |
| 8 | 7.5A | PANEL DIMMING | |
| 10 | 10A | IGN 0: CLUSTER, PCM & BCM | |
| 14 | 15A | INADV POWER BUS | |
| 15 | 20A | (DOOR LOCKS) Sistema de cierre de puertas eléctrico | |
| 17 | 15A | TAIL LAMPS, LIC LAMPS | |
| 18 | 2A | (RADIO) Radio y sistema de audio | |
| 19 | 10A | (HEATED MIRROR) Calefactor de espejo | |
| 20 | 10A | (CRUISE) Control de crucero | |
| 22 | 10A | (CLUSTER) Cuadro de instrumentos | |
| 23 | 20A | CIGAR LTR DATA LINK | |
| 24 | 15A | (STOP LAMPS) Luces de freno | |
| 26 | 10A | FRT PARK LPS | |
| 27 | 10A | POWER DROP | |
| 28 | 10A | CRANK SIGNAL, BCM. CLUSTER | |
| 29 | 10A | (HVAC) Motor soplador de AC | |
| 30 | 10A | BTSI PARK LOCK (REGAL) | |
| 31 | 10A | (AIR BAG) Airbag | |
| 32 | 10A | BCM PWR | |
| 33 | 15A | (HAZARD) Luz de emergencia o balizas | |
| 34 | 15A | LH HEATED SEAT | |
| 36 | 10A | (BCM ACC) Módulo de control del cuerpo | |
| 38 | 20A | LOW BLOWER | |
| 39 | 10A | (ABS) Sistema de frenos antibloqueo | |
| 40 | 10A | TURN SIGNALS, CORN LPS | |
| 41 | 15A | RADIO, HVAC, RFA, CLUSTER CEL TEL | |
| 42 | 25A | HIGH BLOWER | |
| 43 | 15A | RH HEATED SEAT | |
| 44 | 2A | STAG WHL CONT | |
| 45 | 25A | (WIPER) Limpiaparabrisas |
