Compartimiento del Motor
| N° | A | Descripción | |
|---|---|---|---|
| - | To Battery fuse box | ||
| - | EREH 3 | ||
| - | ERESH 1 | ||
| - | ERESH 2 | ||
| - | Blower | ||
| - | U1 | ||
| - | IG2 | ||
| - | Defroster | ||
| - | Main Relay | ||
| - | ST 2 | ||
| - | H Fan | ||
| - | ACC | ||
| - | IG1 | ||
| - | Shift | ||
| - | Compressor | ||
| - | L Fan | ||
| - | Window Stwitch | ||
| - | Fuel Pump | ||
| - | Wiper Motor 2 | ||
| - | Wiper Motor 1 | ||
| - | Low Light | ||
| - | ST 1 | ||
| - | Fliper R | ||
| 1 | 10A | TCU Neutral | |
| 2 | 5A | EPBI | |
| 3 | 10A | MF | |
| 4 | 10A | ACC | |
| 6 | 20A | ECU Bat | |
| 7 | 10A | Ctrl Bat | |
| 8 | 10A | Sensor Bat | |
| 9 | 15A | IGN Coil | |
| 10 | 7.5A | Motor Heating | |
| 11 | 10A | ST FB | |
| 12 | 15A | Wiper | |
| 13 | 20A | Wiper R | |
| 14 | 25A | Wiper F | |
| 15 | 10A | Sidelight R | |
| 16 | 10A | Sidelight L | |
| 20 | 5A | Window Switch | |
| 21 | 10A | AC Compression | |
| 22 | 15A | Horn | |
| 23 | 15A | Fuel | |
| 24 | 30A | Main | |
| 25 | 10A | Main Relay | |
| 27 | 15A | S Light | |
| 29 | 15A | Hi Bean | |
| 31 | 25A | D ELC Seat | |
| 32 | 10A | D R Light | |
| 34 | 10A | EPBI MT | |
| 35 | 15A | Low Bean | |
| 36 | 10A | Brake Lamp | |
| 38 | 10A | ECU | |
| 39 | 15A | TCU | |
| 40 | 30A | Defroaster | |
| 41 | 40A | ACC IG1 | |
| 42 | 40A | ST IG2 | |
| 43 | 40A | Blower | |
| 44 | 40A | H Fan | |
| 45 | 60A | IP Box1 | |
| 46 | 40A | ESC EPBI 1 | |
| 47 | 30A | L Window Motor | |
| 48 | 30A | R Window Motor | |
| 51 | 30A | L Fan | |
| 52 | 40A | IP Box2 | |
| 53 | 40A | ESC EPBI2 |
Relés del Compartimiento del motor
| N° | A | Descripción | |
|---|---|---|---|
| - | High beam relay | ||
| - | Horn relay | ||
| - | Position light | ||
| - | Left front fog lamp relay | ||
| - | Right front fog lamp relay | ||
| - | Left daytime running light relay | ||
| - | Right daytime running light relay |

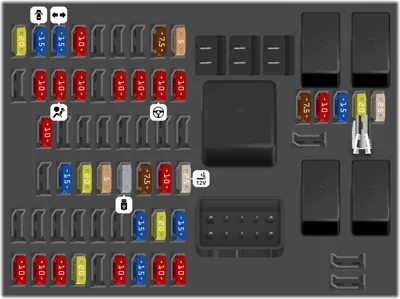

Compartimiento Interno
| N° | A | Descripción | |
|---|---|---|---|
| - | Herramienta para la extracción de los fusibles. | ||
| 1 | 20A | BCM B12 | |
| 2 | 15A | Door Lock | |
| 3 | 15A | Turn Light | |
| 4 | 10A | BCM C1 | |
| 8 | 7.5A | AC Panel | |
| 9 | 5A | Shift Panel | |
| 11 | 10A | BS | |
| 12 | 10A | Airbag Module | |
| 13 | 10A | ESCL | |
| 15 | 10A | 360 Module | |
| 16 | 10A | IP RoofLight | |
| 17 | 10A | EPS | |
| 18 | 10A | GateWay BCM C2 | |
| 19 | 10A | Start Relay | |
| 28 | 15A | InCall Module | |
| 29 | 20A | BXM J3 16 | |
| 30 | 5A | Sunroof Motor | |
| 31 | USB | ||
| 32 | 7.5A | RearView | |
| 33 | 10A | ACC point | |
| 34 | 25A | Power Outlet | |
| 41 | 15A | BCM J3 | |
| 42 | 20A | BCM J3 9 | |
| 43 | 15A | BCM J4 1/3 | |
| 44 | 10A | BF Module | |
| 45 | 10A | Geteway Diagnosis | |
| 46 | 10A | BCM | |
| 47 | 20A | Sunroof Motor | |
| 49 | 10A | ESCL | |
| 50 | 15A | BCM J4 16 | |
| 51 | 10A | TBCM IP | |
| 52 | 10A | AC Panel | |
| 53 | 7.5A | Standby | |
| 54 | 10A | Standby Fuse | |
| 55 | 15A | Standby Fuse 1 | |
| 56 | 20A | Standby Fuse 2 | |
| 57 | 25A | Standby Fuse 3 |
