Chevrolet Lumina / Fusibles 1993

Interior fuse box

Interior fuse box
N°ADescripción
1 10A Radio, Clock
2 15A Radio/Clock, Passive Restraint, Delco Bose Amplifier
3 10A Door Lock, Courtesy, Glove Box, Underhood, Trunk & Modular, Dim Lights, Cigar Lighter, Door Handle, Visor Mirror Light
4 25A Windshield Washer/Wiper
5 10A Temp Door Motor, HVAC/Rear Defogger, DRL Module
6 15A Brakelights, ABS Module
7 15A ECM
8 20A Tail Lights, Radio/Clock, HVAC, Chime Module, DRL Module
9 15A Hazard Warning Flasher
10 10A Rear Defogger Timer Relay, ABS Lamp Driver, DRL Module, Instrument Cluster, Chime Module, Cruise Control
11 5A Instrument Panel Lights & Switch Lights
12 15A Cigarette Lighter
13 10A Turn Signals/Flasher
15 10A ABS Control Module
18 20A Blower Motor, SOL Box

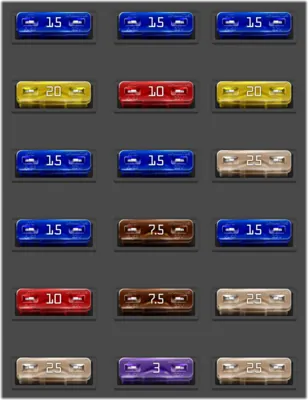

Interior fuse box

Interior fuse box
N°ADescripción
1 15A I/P Compartment Lamp, Dome Lamps, Courtesy Lamps, Underhood Lamp, Reading Lamps, Door Locks Switches, Key Lock Switches
2 15A Front Park Lamps, Front Marker Lamps, Taillamps, License Lamp, Rear Marker Lamps, LPS Fuse
3 15A Radio
4 20A Rear Cigar Lighter, Electronic Level Control
5 10A Fuel Injectors, Electronic Control Module, Electronic Spark Control Module, EGR Electronic Vacuum Regulator Valve
6 20A Rear Window Wiper/Washer Switch, Rear Window Wiper Motor
7 15A Horn, Audio Alarm Module
8 15A Instrument Cluster Turn Indicators, Front Marker Lamps, Front Turn Lamps, Rear Stop/Turn Lamps, Backup Lamps
9 25A Windshield Wiper/Washer Switch, Windshield Wiper Motor Module
10 15A Front Marker Lamps, Front Turn Lamps, Rear Stop/Turn Lamps, Instrument Cluster Turn Indicators
11 7.5A Instrument Cluster, Transaxle Converter Clutch Solenoid, Daytime Running Lamps, Electronic Level Control Hight Sensor
12 15A A/C Compressor relay, Audio Alarm Module, Cooling Fan relay, Cruise Control. Daytime Running Lamps, Generator, Heater and A/C Control Assembly, Solenoid Box, Temperature Door Actuator, Vehicle Speed Sensor Bufer, Rear Window Defogger Relay
13 10A Fuel Pump Relay, Fuel Pump, Oil Pressure Sender/Fuel Pump Switch
14 7.5A Illumination Bulbs, Ashtray, Auxiliary Blower Switch, Door Lock Switches, Heater and A/C Control Assembly, Instrument Cluster, Headlamp Switch, Radio, Rear Window Wiper/Washer Switch, Window Switches
15 25A Auxiliary Blower Motor Blower Motor Low Speed Relay
16 25A Radio, Cigar Lighter
17 3A ABS
18 25A HBLW
