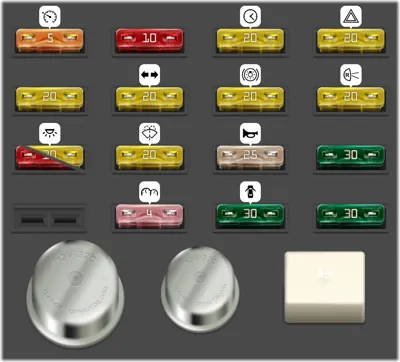

Turn Signal Flasher |
| - |
|
|
Ignition Switch, Key Light Time Delay |
| - |
|
|
Horn |
| 1 |
|
20A |
Hazard Flasher |
| 2 |
|
20A |
Back-Up Lights, A/C Fan & Clutch Relay Coil, Heater Rear Window Switch, Rear A/C, Rear Heater |
| 3 |
|
30A |
Power Window Motors |
| 4 |
|
30A |
A/C or Heater Blower Motor |
| 5 |
|
20A |
Taillights, Park, Side Marker & License Lights, Clock, Radio, Rear A/C Unit Light |
| 6 |
|
20A |
['84-'89]: Stoplights, Chimes; ['90]: Stoplights, Dome, Cargo, Vanity Mirror, Ignition Switch Light, Electric Mirror, Time Delay Relay, Door Courtesy Lights |
| 7 |
|
25A |
Horns, Cigarette Lighter, Power Amp Feed, Horn Relay |
| 8 |
|
30A |
Power Seat Motors, Power Door Locks, Power Mirrors |
| 9 |
|
10A |
Radio & Clock Display |
| 10 |
|
20A |
Turn Signal Lights, Van Conversion Relay |
| 11 |
|
20A |
Windshield Washer/Wiper |
| 12 |
|
4A |
Cluster, A/C & Heater Controls, Ash Receiver, Radio, Overhead Console, Rear Heater Switch, A/C Switch Lights |
| 13 |
|
5A |
Fuel, Voltage, Oil & Temp Gauges & Lights, "CHECK ENGINE" Lights, Speed Control |
| 14 |
|
20A |
Rear Washer/Wiper & Liftgate Release |
| 15 |
|
10A |
['84-'89]: Underseat Storage, Lower Console, Dome, Map, Cargo & Storage Lights, Ignition, Headlight, Courtesy, Vanity Mirror Lights, Radio Memory |
| 15 |
|
20A |
['90]: Spotlight (Fleet) |
