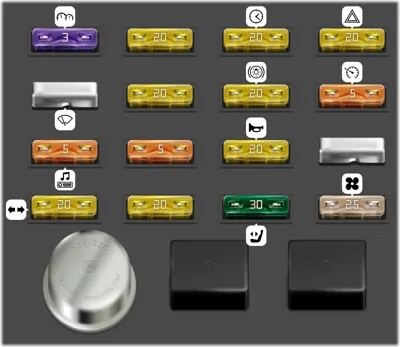

| 1 |
|
20A |
Hazard flasher |
| 2 |
|
5A |
Speed control, defogger relay, door ajar indicator, low washer fluid indicator, low fuel indicator, cornering trunk and tailgate ajar lights |
| 3 |
|
|
Circuit Breaker: Power windows |
| 4 |
|
25A |
Heater blower motor |
| 5 |
|
20A |
Parking, tail, license, side marker, clock, instrument cluster and radio lights |
| 6 |
|
20A |
Stop, dome, map, trunk, cargo, vanity and ignition switch lights. Time delay relay and door courtesy lights |
| 7 |
|
20A |
Glove box light, horns, horn relay, cigar lighter, clock radio memory, liftgate ajar warning, key in/headlamp on warning |
| 8 |
|
30A |
Circuit Breaker: Power door locks and seats |
| 9 |
|
20A |
Right spotlight (fleet vehicles only) |
| 10 |
|
20A |
Left spotlight (fleet vehicles only) |
| 11 |
|
5A |
Brake warning, seat belt warning and low fuel sensor, engine warning and electronic voltage lights, fuel gauge, voltage limiter, voltmeter, temperature and oil gauge |
| 12 |
|
20A |
Air conditioning radiator fan motor |
| 13 |
|
3A |
Cluster, air conditioning and heater lights, console gear light, defogger, rear wiper/washer, radio lights and clock display dimming |
| 14 |
|
|
Circuit Breaker: Deck lid release, liftgate release, rear wiper/washer and speaker relay |
| 15 |
|
5A |
Radio, clock display and speaker relay sense |
| 16 |
|
20A |
Back-up and turn signal lights, air conditioning clutch and idle stop solenoid, air conditioning fan relay coil |
