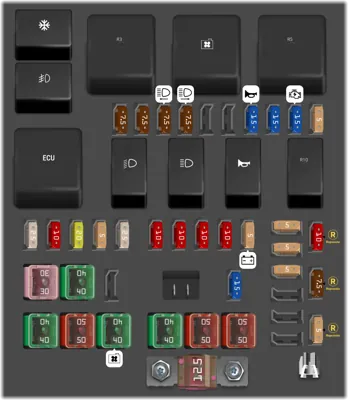

Compartimiento del Motor
| N° | A | Descripción | |
|---|---|---|---|
| - | Herramienta para la extracción de los fusibles. | ||
| - | AC CLUTCH RELAY | ||
| - | FR FOG LAMP RELAY | ||
| - | VACUUM PUMP RELAY | ||
| - | FAN HI RELAY | ||
| - | FAN LO RELAY | ||
| - | EMS RELAY | ||
| - | LOW BEAM RELAY | ||
| - | HIGH BEAM RELAY | ||
| - | HORN RELAY | ||
| - | FL FOG LAMP RELAY | ||
| 1 | 7.5A | LH LO BEAM | |
| 2 | 7.5A | RH LO BEAM | |
| 3 | 7.5A | LH HI BEAM | |
| 4 | 7.5A | RH HI BEAM | |
| 7 | 15A | HORN | |
| 8 | 15A | EFI SNSR | |
| 9 | 15A | IGN COIL | |
| 10 | 5A | MAIN RELAY FUSE | |
| 11 | 25A | VACUUM PUMP | |
| 12 | 10A | ECU BAT+ | |
| 13 | 20A | TCU BAT+ | |
| 14 | 5A | RLY COIL | |
| 15 | 25A | ESP/ABS SOL B+ | |
| 16 | 10A | CLUTCH | |
| 17 | 10A | LF-FOG LAMP | |
| 18 | 10A | RF-FOG LAMP | |
| 19 | 10A | BRK LAMP | |
| 20 | 5A | ALT | |
| 21 | 30A | FAN LO | |
| 22 | 40A | ESP/ABS MTR B+ | |
| 25 | 15A | POSI LAMP | |
| 26 | 40A | ESP/ABS SOL B+ | |
| 27 | 50A | IP FUSE BOX | |
| 28 | 40A | FAN HI | |
| 29 | 40A | FRT BLOWER | |
| 30 | 50A | IP FUSE BOX | |
| 31 | 50A | EPS B+ | |
| 32 | 5A | REVERSE GEAR/TCU | |
| 33 | 5A | BRAKE SW/ABS | |
| 34 | 5A | TCU | |
| 38 | 125A | ALT B+ | |
| 39 | 5A | SPARE | |
| 40 | 7.5A | SPARE | |
| 41 | 10A | SPARE |
