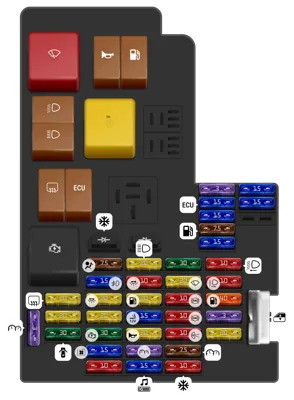

Window washer and wiper relay |
| - |
|
|
Horn relay |
| - |
|
|
Fuel pump relay |
| - |
|
|
Low beam relay |
| - |
|
|
High beam relay |
| - |
|
|
Starter inhibitor relay |
| - |
|
|
Rear window defroster |
| - |
|
|
Main relay (Control module) |
| - |
|
|
Ignition |
| 1 |
|
3A |
Instrument panel, Electronic engine control, [1.6 engine] PATS (Immobilizer) system |
| 2 |
|
20A |
Rear window defroster, Electric rear view mirror |
| 3 |
|
20A |
Rear electrical outlet, [1.6 engine] - Lambda probe 1 Lambda probe 2 |
| 4 |
|
30A |
Door locks |
| 5 |
|
7.5A |
Air bag module |
| 6 |
|
15A |
Fog light relay |
| 7 |
|
20A |
Interior lights, Hazard warning lights, Horn switch, [1.6 engine] Electronic engine control, Fuel pump relay |
| 8 |
|
20A |
Engine ignition system |
| 9 |
|
30A |
Starting system |
| 10 |
|
15A |
Electric fan relay, Relay air conditioning |
| 11 |
|
10A |
Alarm horn |
| 12 |
|
20A |
High beam |
| 13 |
|
10A |
[Engine 1.6 ]: Courtesy light, Glove box light, Luggage compartment light (Vehicle without lock), Cold start, Air conditioning, Lambda sensor, Electric fan relay (Low and high) (Vehicle with lock) |
| 14 |
|
20A |
Fuel pump relay |
| 15 |
|
15A |
Cigarette lighter, Diagnostic connector |
| 16 |
|
20A |
Horn relay |
| 17 |
|
3A |
Instrument panel, Air conditioning / [Engine 1.6] - Electronic engine control, Instrument panel |
| 18 |
|
15A |
Radio, Audio system, Diagnostic connector |
| 19 |
|
30A |
Interior electric fan, Air circulation fan |
| 20 |
|
20A |
Wiper, washer of windshield and rear window |
| 21 |
|
10A |
ABS, Air conditioning, Rear window defroster, Door lock, Mirror courtesy light, 4WD (Only 4x4 vehicles) / [1.6 engine]: Mirror courtesy light (Vehicle without electric locks), ABS, Air conditioning, Electric door lock, Window defroster |
| 22 |
|
10A |
Brake light, Multifunction steering column lever, ABS, Electronic transmission lever module, Electronic engine control |
| 23 |
|
10A |
Direction indicators (Turns), Reverse light / [1.6 Engine]: Turn signals, Reverse light, Speed ​​sensor |
| 24 |
|
7.5A |
Audio system lighting, Instrument panel |
| 25 |
|
10A |
[1.6 Engine] Cold start system, Air conditioning, Radiator high and low speed relays (Vehicle without lock), Courtesy light, Glove box light, Luggage compartment light, Mirror courtesy light (Vehicle with lock) |
| 26 |
|
10A |
Left low beam |
| 27 |
|
10A |
Right low beam |
| 28 |
|
40A |
Engine electronic control relay, Fuel pump |
| 29 |
|
3A |
[Engine 1.6] Purge valve |
| 30 |
|
20A |
[Engine 1.6] Injectors, Thermostatic valve, Ignition coil, Cold start relay |
| 31 |
|
|
Electric windows (Circuit breaker) |
| 33 |
|
|
Air conditioning relay, 4x4 traction system (DIODE) |
| 34 |
|
3A |
PATS system, Electronic immobilizer / [Engine 1.6] Rear electrical outlet |
| 35 |
|
15A |
Electronic engine control |
| 36 |
|
15A |
Lambda sensor, Purge valve, Speed ​​sensor, Idle speed control, Engine position sensor, Valve position sensor |
| 37 |
|
7.5A |
Fuel pump relay, Injectors, Radiator fan relay (High and Low), Starter relay cold |
| 38 |
|
15A |
Ignition coil |
| 39 |
|
15A |
Cold start relay |
| 40 |
|
15A |
Transmission lever module, Transmission control module, Transmission switch |
