Ford F-250 / Fusibles 2000

Fusiblera del Habitáculo

Fusiblera del Habitáculo
N°ADescripción
- Interior Lamp Relay
- Horn
- Power Window One Touch Down Relay
- Accessory Delay Relay
1 20A Turn/Hazard Lamps
2 10A Airbag Module
3 20A Cigar Lighter Data Link Connector
4 10A Glove Box Lamp, Map Lamps, Power Mirrors, Underhood Lamp
7 5A Power Window/Lock Switch Illumination
8 5A Radio, Headlamp Switch Illumination
10 15A Dual Fuel Tanks
11 30A Wiper Motor, Wiper Run/Park Relay Coil, Wiper Hi/LO Relay Coil, Washer Pump Relay Coil
12 15A Horn
13 20A Stop Lamps, Center High-mount Stop Lamp Trailer Tow Stop Lamp, Speed Control
14 10A Dome Lamp Cargo Lamp, Courtesy Lamps, Running Board Lamps
15 5A Stop Lamp Switch (Logic) Generic Electronic Module (GEM) Powertrain Control Module (PCM), Four Wheel Anti-lock Brake System (4WABS) Module, Brake Shift Interlock, Cluster and PCM Keep Alive Memory
16 15A Instrument Cluster Hi-beam Headlamps
19 10A Auxiliary Powertrain Control Module (APCM) (Diesel only), Instrument Cluster, GEM Module. Overdrive Cancel Switch, Idle Validation Switch (Diesel only), Overhead Console Diesel PCM via Clutch
20 15A Starter Motor Relay Coil, Cluteh Switch
22 10A Air Bag Module, Passenger Air Bag Activation/Deactivation Switch, Blower Motor Relay Coil
24 10A A/C Clutch, Blend Door Actuator Trailer Tow Battery Charge Relay Coil Four Wheel Anti-Lock Brake System (4WABS), Turn Signal
27 10A Ignition Run Power Feed (Customer Access)
28 10A Brake Shift Interlock, DRL Relay Coil Speed Control Module. Backup Lamps, Trailer Tow Backup Lamp Relay Coil, Electronic Shift On The Fly Hub Look Solenoid, Vacuum Pump Motor
29 5A Instrument Cluster (Charge and Airbag Warning Lamps)
30 30A PCM Relay Coil, Ignition Coil (Gasoline only), Fuel Heater (Diesel only), Wastegate Solenoid (Diesel only), Injector Driver Module Relay Coil (Diesel only)

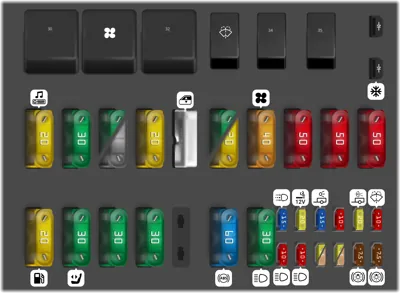

Fusiblera del Motor

Fusiblera del Motor
N°ADescripción
1 7.5A Trailer Tow Left Stop/Turn Lamp
2 10A Washer Pump
3 7.5A Trailer Tow Right Stop/Turn Lamp
4 20A Trailer Tow Backup Lamps, Trailer Tow Park Lamps
5 20A Gasoline only-PCM. Fuel Pump Relay Coil, Mass Air Flow Sensor, Fuel Injectors
5 5A Diesel only-Dual Alternator "A" Field
6 10A Gasoline only-A/C (CASS) Diesel only-Single or Dual Alternator "A" Field Regulator
7 20A Gasoline only-Vapor Management Valve, HEGO Sensors, Intake Manifold Communication Control. EVR Solenoid PCM, Canister Vent Solenoid
7 5A Diesel only-Dual Alternator "A" Field
8 15A Trailer Tow Electronic Brake Illumination, Park Lamps, Trailer Tow Park Lamp Relay Coil
9 10A Left Headlamp (Low Beam)
10 20A Power Point
11 10A Right Headlamp (Low Beam)
12 15A Daytime Running Lamps (DRL) Resistor
13 30A Multi-function Switch, Headlamps
14 60A Anti-Lock Brake System
16 30A Trailer Tow Battery Charge
17 30A Electronic Shift On The Fly Relay, Transfer Case Shift Motor
18 30A Power Seat
19 20A Fuel Pump Motor, PCM
20 50A Ignition Switch (B4 & B5)
21 50A Ignition Switch (B1 & B3)
22 50A Junction Box Battery Feed
23 40A Blower Motor
24 30A (Gasoline only) PCM Power
24 20A (Diesel only) PCM Power
25 Power Windows
26 20A If equipped with Remote Kevless Entry-Driver Door Unlock Relay Coil, All Door Unlock Relay Coil All Door Lock Relay Coil, Park Lamp Flash Relay, If not equipped with Remote Keyless Entry-Power Door Lock Motors
27 30A Gasoline only-Not Used
27 Diesel only-Injector Driver Module
28 30A Trailer Tow Electronic Brake Controller
29 20A Radio
30 PCM Power Relay
31 Blower Motor Relay
32 A/C CASS [Gasoline only], Injector Driver Module Power Relay [Diesel only]
33 Washer Pump Relay
34 Windshield Wiper Park/Run Relay
35 Windshield Wiper HI/LO Relay
36 A/C Clutch Diode
37 PCM Diode
38 Trailer Tow Backup Lamp Relay
39 Trailer Tow Battery Charge Relay
40 Electronic Shift On The Fly Relay #1
41 Electronic Shift On The Fly Relay #2
