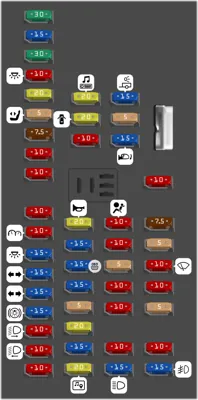

Fusiblera de habitáculo
| N° | A | Descripción | |
|---|---|---|---|
| 1 | 30A | not used (spare) | |
| 2 | 15A | Upfitter relay #4 | |
| 3 | 30A | Smart window motor | |
| 4 | 10A | Interior lights, Hood lamp | |
| 5 | 20A | Moonroof | |
| 6 | 5A | Driver seat module | |
| 7 | 7.5A | Driver seat switch, Driver lumbar motor | |
| 8 | 10A | Power mirror switch | |
| 9 | 10A | Upfitter relay #3 | |
| 10 | 10A | Run/accessory relay, Customer access feed | |
| 11 | 10A | Instrument cluster | |
| 12 | 15A | Interior lighting, Lighted running board lamps | |
| 13 | 15A | Right turn signals and brake lamps, Right trailer tow stop turn relay | |
| 14 | 15A | Left turn signals and brake lamps, Left trailer tow stop turn relay | |
| 15 | 15A | High-mounted stop lamps, Backup lamps, Trailer tow backup relay, Reverse signal interior mirror | |
| 16 | 10A | Right low beam headlamp | |
| 17 | 10A | Left low beam headlamp | |
| 18 | 10A | Keypad illumination, Passive anti-theft indicator, Powertrain control module, Brake shift interlock | |
| 19 | 20A | Subwoofer, Amplifier | |
| 20 | 20A | Power door locks | |
| 21 | 10A | Brake on/off switch | |
| 22 | 20A | Horn | |
| 23 | 15A | Not used (spare) | |
| 24 | 15A | Steering wheel control module,Diagnostic connector, Power fold mirror relay, Remote keyless entry, Electronic finish panel | |
| 25 | 15A | Not used (spare) | |
| 26 | 5A | Steering wheel control module | |
| 27 | 20A | Not used (spare) | |
| 28 | 15A | Ignition switch | |
| 29 | 20A | SYNC, GPS module, Radio faceplate | |
| 30 | 15A | Parking lamp relay, Trailer tow parking lamp relay | |
| 31 | 5A | Trailer brake controller (brake signal), Customer access | |
| 32 | 15A | Moonroof motor, Telescoping mirror switch, Auto dimming mirrors, Power inverter, Driver and passenger door lock switch illumination, Rear heated seat switch illumination | |
| 33 | 10A | Restraint control module | |
| 34 | 10A | Heated steering wheel module, Rear heated seats module | |
| 35 | 5A | Select shift switch, Reverse park aid module, Trailer brake control module | |
| 36 | 10A | Fuel tank select switch | |
| 37 | 10A | PTO heater | |
| 38 | 10A | AM/FM radio faceplate | |
| 39 | 15A | High beam headlamps | |
| 40 | 10A | Parking lamps (in mirrors), Roof marker lamps | |
| 41 | 7.5A | Passenger airbag deactivation indicator | |
| 42 | 5A | Not used (spare) | |
| 43 | 10A | Wiper relay | |
| 44 | 10A | Upfitter switches | |
| 45 | 5A | Not used (spare) | |
| 46 | 10A | Climate control | |
| 47 | 15A | Fog lamps, Fog lamp indicator (in switch) | |
| 48 | Power windows switch, Power rear sliding window switch | ||
| 49 | Delayed accessory |
Fusiblera de motor
| N° | A | Descripción | |
|---|---|---|---|
| 1 | Blower motor | ||
| 3 | Urea heaters [Diesel engine] | ||
| 5 | Rear window defroster, Heated mirrors | ||
| 7 | 50A | Rear window defroster, Heated mirrors | |
| 8 | 30A | Passenger seat | |
| 9 | 30A | Driver seat | |
| 12 | 30A | Smart window motor | |
| 15 | Fuel pump [Diesel engine] | ||
| 17 | 15A | Heated mirror | |
| 22 | 30A | Trailer tow electric brake | |
| 23 | 40A | Blower motor | |
| 25 | 30A | Wipers | |
| 26 | 30A | Trailer tow park lamps | |
| 27 | 25A | Urea heaters [Diesel engine] | |
| 29 | Trailer tow park lamps | ||
| 30 | A/C chutch | ||
| 31 | Wipers | ||
| 33 | 15A | Vehicle power | |
| 34 | 15A | Vehicle power 2 [Diesel engine] | |
| 34 | 20A | Vehicle power 2 [Das engine] | |
| 35 | 10A | Vehicle power 3 | |
| 36 | 15A | Vehicle power 4 [Diesel engine] | |
| 36 | 20A | Vehicle power 4 [Gas engine] | |
| 37 | 10A | Vehicle power 5 [Diesel engine] | |
| 38 | Powertrain control module [Diesel engine], Electronic control module [Gas engine] | ||
| 39 | 10A | 4x4 hub lock | |
| 40 | 15A | 4x4 electronic lock | |
| 42 | 20A | Rear heated seats | |
| 45 | 10A | Run/start relay coil | |
| 46 | 10A | Transmission control module keep-alive power [Diesel engine] | |
| 47 | 10A | A/C clutch feed | |
| 48 | Run/start | ||
| 49 | 10A | Rearview camera system | |
| 50 | 10A | Blower motor relay coil | |
| 52 | Powertrain control module / Electronie control module / Transmission control module run/start | ||
| 53 | 10A | 4x4 module | |
| 54 | 10A | Anti-lock brake system run/start | |
| 55 | 10A | Rear window defroster coil, Battery charge coil | |
| 56 | 20A | Passenger compartment fuse panel run/start feed | |
| 57 | Fuel pump | ||
| 66 | 20A | Fuel pump | |
| 68 | 10A | Fuel pump relay coil | |
| 70 | 10A | Trailer tow backup lamp | |
| 71 | 10A | Canister vent [Gas engine] | |
| 72 | 10A | Powertrain control module / Electronic control module relay coil feed keep-alive power | |
| 74 | Trailer tow left-hand stop/turn | ||
| 75 | Trailer tow right -hand stop/turn | ||
| 76 | Backup lamp | ||
| 82 | 20A | Auxiliary power point #2 | |
| 83 | 20A | Auxiliary power point #1 | |
| 84 | 30A | 4x4 shift motor | |
| 85 | 30A | Heated/cooled seats | |
| 86 | 25A | Anti-lock brake system coil feed | |
| 87 | 20A | Auxiliary power point #5 | |
| 88 | 20A | Auxiliary power point #6 | |
| 89 | 40A | Starter motor | |
| 90 | 25A | Trailer tow battery charge | |
| 92 | 20A | Auxiliary power point #4 | |
| 93 | 20A | Auxiliary power point #3 | |
| 94 | 25A | Upfitter #1 | |
| 95 | 25A | Upfitter #2 | |
| 96 | 50A | Anti-lock brake system pump | |
| 97 | 40A | Inverter | |
| 99 | 40A | Instrument panel power inverter | |
| 100 | 25A | Trailer tow turn signals | |
| 101 | Starter | ||
| 102 | Trailer tow battery charge |
