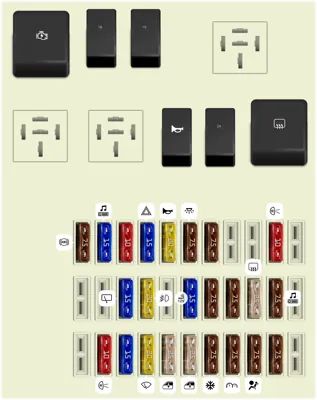

Fusiblera de pasajero

N°	A	Descripción
17		Starter
18		Rear intermittent wiper (may be incorporated with relay 19)
19		Front intermittent wiper (may be incorporated with relay 18)
23		Horn
24		Battery saver
25		Rear defrost
30	7.5A	ABS
31	15A	Radio
32	10A	Light switch
33	15A	Hazard flasher
34	20A	Horn
35	7.5A	Interior lamps, power mirrors
36	7.5A	Central timer, electronic modules
39	10A	Back-up lamps
43	15A	Rear wiper
44	20A	Fog lamps
46	15A	Cigar lighter
47	7.5A	Side lights (left)
48	7.5A	Side lights (right)
49	25A	Rear defrost
50	7.5A	Radio, central timer
53	10A	Back-up lamps
54	15A	Brake lamps
55	20A	Front wipers
56	25A	Front power windows
57	25A	Rear power windows
58	7.5A	Air conditioning, recirculated air
59	7.5A	Electronic modules, instrument cluster
60	7.5A	Air bag module
61	7.5A	Light switch
63	20A	Central lock module (on back side of fuse panel)

N°	A	Descripción
-		Ignition
-		High beams
-		Low beams
-		Fuel pump
-		Engine management
-		Air conditioning
-		Daytime running lights
-		Fog lamps
-		Engine cooling fan level 2 (A/C)
-		Engine cooling fan level 1
1	40A	Main power supply to electrical system
2	30A	Engine cooling fan (A/C) 2nd fuse
6	50A	Engine cooling fan (A/C) lst fuse
7	40A	Main power supply to electrical system
8	30A	Ignition
9	20A	Engine management
10	10A	Battery voltage sensor, diagnostic plug
11	30A	ABS
12	15A	Fuel pump
16	10A	Low beam (left side)
17	10A	Low beam (right side)
18	10A	Heated oxygen sensors
20	10A	Engine management
21	20A	ABS
22	20A	DRL (low beams)
26	10A	High beam (left side)
27	10A	High beam (right side)
64	30A	Heater blower motor
