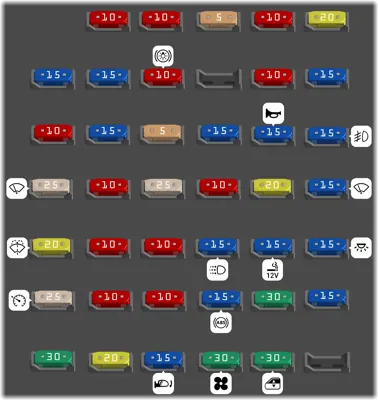

| 1 |
|
10A |
(Power Mirror) Power ror/Anti-theft warning lamp/ Diagnostic conn power |
| 2 |
|
10A |
(Prove Out) LH Tail Stop, Park lamps |
| 3 |
|
5A |
(Dimmer Illumination) Instrument cluster/Radio remote radio/Cigar lighter/Headlamp graphics/Heated backlight switch/Heater controls/Power locks/Power windows/Rear wiper switch/Rear heater/Fog lamp switch |
| 4 |
|
10A |
(Side Lamp) Side marker lamps |
| 5 |
|
20A |
(Headlamp) Headlamp washer |
| 6 |
|
15A |
(Quarter Flip Window) Left quarter flip vindow/Right quarter flip window |
| 7 |
|
15A |
(Stoplamp) High mount brakelamp/Right stoplamp/Lef stoplamps/EEC/Brake shift interlock/Speed control |
| 8 |
|
10A |
(Audio/Amp) R.H. Tail, Stop, Park lamps |
| 10 |
|
10A |
(Hi-beam) GEM/Anti-theft module/Keyless entry High beam indicator (electronic instrument cluster only) |
| 11 |
|
15A |
(Park Lamps) Park lamps |
| 12 |
|
10A |
(Run/Ace) module/Lamp outage module/Radio receiver/ Remote radio/ Lamp outage module lamp |
| 13 |
|
15A |
(Audio) Radio/C[ disk changer |
| 14 |
|
5A |
(Run/Start) Instrument luster/Electrochromic mirror |
| 15 |
|
15A |
(GEM) GEM |
| 16 |
|
15A |
(Horn) Horn/Horn relay (coil) |
| 17 |
|
15A |
(Fog Lamp) Front fog lamps |
| 18 |
|
25A |
(Front Wiper) Wiper relays/Wiper/Washer pump |
| 19 |
|
10A |
(GEM) GEM/Electronic cluster |
| 20 |
|
25A |
(Ignition) Ignition coil/Ignition capacitor/IRCM |
| 21 |
|
10A |
(Run) A/C clutch/Brake shift interlock/Heated backlight relay (coil)/Blend door motor, electronic cluster/Airbag diagnostic module |
| 22 |
|
20A |
(Rear Cigar) Rear cigar lighter/Power plug |
| 23 |
|
15A |
Wipers and Flash to Pass |
| 24 |
|
20A |
Rear wiper motor/Rear washer pump |
| 25 |
|
10A |
Turn lamps/Turn indicator R (cluster) |
| 26 |
|
10A |
L.H. Aero headlamp |
| 27 |
|
15A |
Daytime running lamps |
| 28 |
|
15A |
Front cigar lighter |
| 29 |
|
15A |
(Illumination) Battery saver relay (coil)/Interior lamp relay (coil)/Delayed accessory relay (coil)/ Visor lamps/Underhood lamp/Glove box lamp/2nd row reading lamp/Rail lamp/B-pillar lamp/ Cargo lamp/Dome lamp/Courtesy lamps/ Puddle lamps/Keyhole lamps/Keyless entry module |
| 30 |
|
25A |
Speed control/Brake pressure switch |
| 31 |
|
10A |
Load leveling compressor/Left and right spring solenoid |
| 32 |
|
10A |
R.H. Aero headlamp |
| 33 |
|
15A |
ABS module/ABS relay |
| 34 |
|
30A |
Left power window/One-touch down relay (coil) |
| 35 |
|
15A |
Anti-theft module |
| 36 |
|
30A |
AC mode switch |
| 37 |
|
20A |
Power door lock motors |
| 38 |
|
15A |
Heated mirrors |
| 39 |
|
30A |
Rear heater blower motor |
| 40 |
|
30A |
Right power window |
