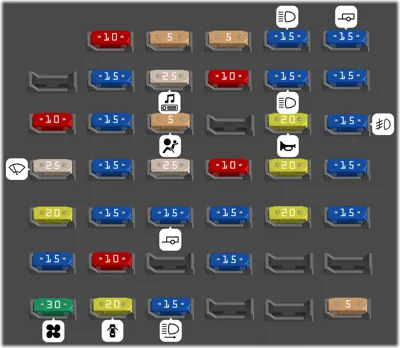

| 1 |
|
10A |
(Power Mirror) Data Link Connector (DLC)/Power Mirrors |
| 2 |
|
5A |
(Prove Out) Start interrupt relay/GEM |
| 3 |
|
5A |
(Dimmer Illumination) Instrument illumination Recortes |
| 4 |
|
15A |
(Headlamp) LH headlamp (Low Beam) |
| 5 |
|
15A |
(Trailer Tow) Trailer park lamps |
| 6 |
|
- |
(-) Not used |
| 7 |
|
15A |
(Stoplamp) Brake On/Off (BOO) switch/Stoplanapsyirar. Trailer RH and LH relay Brake shift interlock/ RAP module/Speed control module/Trailer electric brake module/A ABS module/PCN |
| 8 |
|
25A |
(Audio/Amp) Radio amplifier/Subwoofer amplifier |
| 9 |
|
10A |
(Park Lamps) Parklamps/Side marker lamps/Licens lamps/ Trailer park lamp relay/Electric brake module |
| 10 |
|
15A |
(Headlamp) RH headlamp (Low beam) |
| 11 |
|
15A |
(Fusing) I/P fuses 3 and 9 |
| 12 |
|
10A |
(Run/Acc) GEM/RAP module/ module/Auxiliary warning module/Overhead console |
| 13 |
|
15A |
(Audio) Radio/Remot headphone/CD disk changer |
| 14 |
|
5A |
(Run/Start) Instrument cluster Auxiliary warning module/ Air bag |
| 16 |
|
20A |
(Horn) Horns |
| 17 |
|
15A |
(Fog Lamp) Fog lamps |
| 18 |
|
25A |
(Front Wiper) Windshield wiper/Washer system |
| 19 |
|
15A |
(GEM) GEM/RAP module |
| 20 |
|
25A |
(Ignition) Ignition oil/Ignition capacitor/PCM power relay |
| 21 |
|
10A |
(Run) Shiftlock actuator/Re window defrost/GEM/ Air bag module/A/C-heater control switch/ Blend door actuator |
| 22 |
|
20A |
(Power Access) Rear cigar lighter/Power plug |
| 23 |
|
15A |
(Flash to Pass) Flash to Pass |
| 24 |
|
20A |
(Rear Wiper) Rear wiper/Rea washer system |
| 25 |
|
15A |
(Hazards) Instrument cluster/Tu signal lamps |
| 26 |
|
15A |
(Trailer) Trailer Turn/Stop/Hazard lamps |
| 27 |
|
15A |
(Turn Lamps) Electronic flasher |
| 28 |
|
20A |
(Front Cigar) Front cigar lighter |
| 29 |
|
15A |
(Interior Illumination) Interior lamps/Battery saver relay/Delayed accessory relay |
| 30 |
|
15A |
(Speed Control) ABS module/Speec control module/Bra pressure switch |
| 31 |
|
10A |
(Load Leveling) Rear air suspensión |
| 32 |
|
- |
(-) Not used |
| 33 |
|
15A |
(ABS) ABS lamp relay /Back-up lamps/GEM/RAP module/Day/night mirror |
| 34 |
|
- |
(-) Not used |
| 35 |
|
- |
(-) Not used |
| 36 |
|
30A |
(Blower) Front blower motor |
| 37 |
|
20A |
(Power Door Locks) Power door lock |
| 38 |
|
15A |
(High Beam) LH and RH high beams |
| 39 |
|
- |
(-) Not used |
| 40 |
|
- |
(-) Not used |
| 41 |
|
5A |
(Autolamps) Autolamp Relay/ Day/nigh mirror |
