Fusiblera del Habitáculo
| N° | A | Descripción | |
|---|---|---|---|
| - | Switched System Power Relay #4 | ||
| - | Accessory Delay Relay | ||
| - | Front Blower Motor Relay | ||
| - | Switched System Power Relay #3 | ||
| - | Rear Defrost Relay | ||
| - | Auxiliary Blower Motor Relay | ||
| 1 | 10A | Right Stepwell Lamp, Left Stepwell Lamp, Right Puddle Lamp, Left Puddle Lamp, Left 2nd Row Reading Lamp, Right 2nd Row Reading Lamp, Left 3rd Row Reading Lamp, Right 3rd Row Reading Lamp, Cargo Lamp, Dome Lamp, Map Lamp, LH Visor/Vanity Lamp, RH Visor/Vanity Lamp, Remote Keyless Entry Keypad, Left Turn Signal Mirror, Right Turn Signal Mirror | |
| 2 | 25A | Glove Box Lamp, LH I/P Courtesy Lamp, RH I/P Courtesy Lamp, Video Cassette Player | |
| 3 | 15A | LH Power Mirror Motor, RH Power Mirror Motor Adjustable Pedal Motor, Memory Module (if equipped) | |
| 5 | 20A | Console Power Point | |
| 6 | 15A | Radio Compact Dise Changer, Remote Keyless Entry Module. PSD (Power Sliding Door) Module RH and LH. Rear Seat Radio Controller (if equipped), Rear Seat Entertainment Module (if equipped) | |
| 7 | 15A | Left Rear Turn Lamp, Right Backup Lamp, Right Stop Lamp, Right Rear Park Lamp, Right License Lamp, Left License Lamp, LH Backup Lamp | |
| 8 | 20A | Rear Eleetronic Module (RHF/RH Sliding/LH Sliding/Liftgate Door Lock Motors, Aux. Air Blend Door Motor, Aux. Air Mode Door Motor) | |
| 9 | 10A | Cluster, Powertrain Control Module Relay (coil) | |
| 10 | 15A | Heated Baeklite Relay (coil), Speed Control Module, ABS Module or IVD Module, Heat Seat Switch (RH/LH) (if equipped), Heated Seat Module (RH/LH) (if equipped), Cluster, Front Temp Blend Door Actuator, Brake Shift Interlock Solenoid, Powertrain Control Module, Power Sliding Door Module RH and LH. Reverse Sensing System Front A/C Control Head. Steering Wheel Angle Sensor (if equipped) | |
| 11 | 15A | Electric Brake Controller, Brake Shift Interlock Solenoid, Rear Electronic Module | |
| 12 | 20A | Center High-Mount Stop Lamp | |
| 13 | 10A | Right Rear Turn Lamp Left Stop Lamp, Left Rear Park Lamp | |
| 14 | 10A | Autolamp Sensor, Transmission Overdrive Cancel Switch, Front Electronic Module, Compass Module, Electrochromatic Mirror, Power Sliding Door Overhead Console Switch | |
| 15 | 20A | Console Power Point | |
| 16 | 10A | Cluster | |
| 17 | 20A | Cigar Lighter/Powerpoint, Datalink Connector | |
| 18 | 15A | LH Quarter Window Motor, RH Quarter Window Motor. RH Window Switch Backlighting RH Lock Switch Backlighting Master Control Switch (LH) Backlighting, Radio, Video Cassette Player Liquid Crystal Display, Front Electronic Module | |
| 19 | 10A | Starter Interrupt Relay (coil) | |
| 22 | 10A | LH Heated Mirror, RH Heated Mirror | |
| 23 | 20A | Body Powerpoint, Auxiliary Blower Relay #1 and #2 Coils | |
| 25 | 10A | Radio (Anti-theft) | |
| 26 | 10A | Airbag Module, Passenger airbag deactivated indicator, Passenger Seat Weight Pressure sensor ECU | |
| 28 | 10A | Cluster |

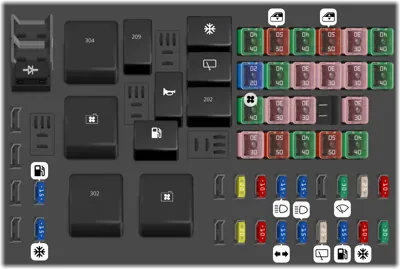

Fusiblera del Motor
| N° | A | Descripción | |
|---|---|---|---|
| 1 | 30A | Powertrain Control Module Relay | |
| 2 | 10A | Powertrain Control Module, Front Electronic Module | |
| 3 | 10A | A/C Compressor Clutch | |
| 4 | 25A | Horns Horn Relay (coil) | |
| 5 | 15A | Fuel Pump Motor, Powertrain Control Module | |
| 6 | 30A | Front Wiper Motor, Front Wiper Relay, Front Washer Pump, FEM | |
| 7 | 25A | Rear Wiper Motor, Rear Washer Pump, Rear Wiper Relay (coil) | |
| 9 | 15A | Right Headlamp (Low and High Beam) | |
| 10 | 15A | Right Front Park Lamp Right Front Turn Lamp, Right Front Cornering Lamp, Right Front Auxiliary Driving Lamp | |
| 11 | 15A | Left Front Park Lamp, Left Front Turn Lamp, Left Front Cornering Lamp, Left Front, Auxiliary Driving Lamp | |
| 12 | 15A | Left Headlamp (Low and High Beam) | |
| 13 | 10A | Alternator Field Sense | |
| 14 | 10A | Front Electronic Module (LH Door Lock Motor) | |
| 15 | 20A | T/T park Lamps | |
| 16 | 20A | T/T Turn Lamps | |
| 19 | 15A | AX4S Transaxle Vapor Management Valve, A/C Clutch Relay Coil, EGR Control Solenoid, Engine Fuel Control HO2S #11 Sensor, Engine Fuel Control HO2S #21 Sensor, Catalyst Monitor HO2S #12 Sensor Catalyst Monitor HO2S #22 Sensor, Canister Vent Solenoid, Intake Manifold Runner Control | |
| 20 | 15A | Ignition Coil Intake Air Control Valve, Fuel Injectors #1, #2, #3, #4, #5, #6, Mass Air Flow Sensor, Fuel Pump Relay Coil, Intake Manifold Runner Control, HI-Speed Cooling Fan Relay Coil, LO-Speed Cooling Fan Relay Coil, Powertrain Control Module, Passive Anti-Theft Receiver | |
| 101 | 40A | ABS Module or IVD Module | |
| 102 | 40A | ABS Module or IVD Module | |
| 103 | 40A | SSP4 Relay, SSP4 Relay (coil) | |
| 104 | 30A | LH Power Seat Motors (if equipped) LH Power Lumbar Motor (if equipped), Driver Seat Memory Module (if equipped) | |
| 105 | 30A | Starter Motor Solenoid, Ignition Switch | |
| 106 | 30A | Delayed Accessory Relay, Delayed Aecessory Relay (coil), Front Electronic Module, RHF Window Motor | |
| 107 | 50A | RH/LH Engine Cooling Fan Motors, Cooling Fan Dropping Resistor | |
| 109 | 30A | Heated Seat Modules (RH/LH) | |
| 110 | 50A | RH Power Sliding Door Module | |
| 111 | 40A | Fuse Junction Box | |
| 112 | 30A | Trailer Tow Electric Brake Controller | |
| 113 | 30A | Front Electronic Module (LH Window Motor) | |
| 114 | 40A | SSP3 Relay SSP3 Relay (coil) | |
| 115 | 50A | Fuse Junction Box Bus #2 | |
| 116 | 30A | Heated Backlight Relay | |
| 117 | 40A | Auxiliary Blower Relay (coil), Auxiliary Blower Motor | |
| 118 | 50A | LH Power Sliding Door Module | |
| 119 | 30A | Fuse Junction Box Bus #1 | |
| 120 | 40A | Front Blower Relay (coil) Front Blower Motor | |
| 121 | 20A | Ignition Switch, Rear Defrost Relay (coil) | |
| 122 | 40A | RH Power Seat Motors, RH Power Lumbar Motor | |
| 202 | Front Wiper ON/OFF Relay | ||
| 203 | Rear Wiper Relay | ||
| 204 | A/C Clutch Relay | ||
| 205 | Horn Relay | ||
| 207 | Fuel Pump Relay | ||
| 209 | Front Wiper Hi/Low Relay | ||
| 301 | Low Speed Engine Cooling Fan Relay | ||
| 302 | Starter Interrupt Relay | ||
| 303 | High Speed Engine Cooling Fan Relay | ||
| 304 | Powertrain Control Module Relay | ||
| 501 | Powertrain Control Module Diode |
