Honda Civic / Fusibles 2009

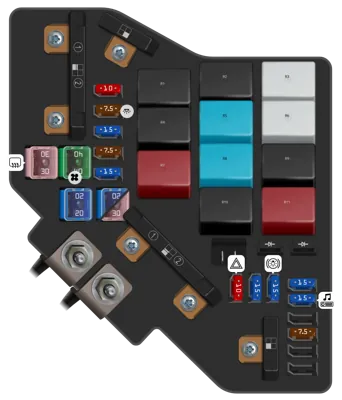

Fusiblera del Motor

Fusiblera del Motor
N°ADescripción
- Unidentified Relay
- Unidentified Relay
- Unidentified Relay
- Unidentified Relay
- Unidentified Relay
- Unidentified Relay
- Unidentified Relay
- Unidentified Relay
- Unidentified Relay
- Unidentified Relay
- Unidentified Relay
1 Main Fuse (100 amp)= -- EPS (If equipped) (70 AMP )
2 60 amp- Option Main /// 50 amp - Ignition Switch Main
3 30 amp - ABS/VSA Motor Or ABS/VSA F/S /// 40 amp- ABS/VSA F/S (On models with VSA system) /
4 Headlight Main (50 amp) Power Window Main (40 amp)
6 20A Sub Fan Motor
7 20A Main Fan Motor (M/T)
7 30A Main Fan Motor (A/T)
8 30A Rear Defogger
9 40A Blower
10 10A Hazard
11 15A FI Sub
12 15A Stop and Horn
15 7.5A IGPS Oil Level
17 15A Audio Amp (If equipped)
18 15A IG Coil
19 15A FI Main
20 7.5A MG Clutch
21 15A DBW
22 7.5A Interior Light
23 10A Back Up

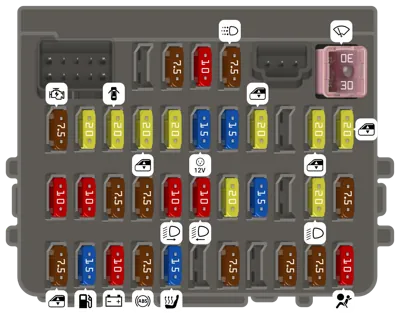

Fusiblera del Habitáculo

Fusiblera del Habitáculo
N°ADescripción
1 7.5A Power Window
2 15A Fuel Pump
3 10A Alternator
4 7.5A ABS/VSA
5 15A Heated Seat(If equipped)
7 7.5A TPMS (If equipped)
9 7.5A ODS
10 7.5A METER
11 10A SRS
12 10A Right Headlight High
13 10A Left Headlight High
14 7.5A Small (Interior)
15 7.5A Small (Exterior)
16 10A Right Headlight Low
17 10A Left Headlight Low Beam
18 20A Headlight High Beam Main
19 15A Small Lights (Main)
21 20A Headlight Low Beam Main
22 7.5A HAC (If equipped)
23 7.5A STS (If equipped)
24 20A Moonroof (If equipped)
25 20A Door Lock
26 20A Driver's Power Window
27 20A HAC OP (If equipped)
28 15A Rear Accessory Socket
29 15A Accessory
30 20A Passenger's Power Window
32 20A Right Rear Power Window
33 20A Left Rear Power Window
35 7.5A Accessory Radio
36 10A HAC
37 7.5A Daytime Running Light
38 30A Front Wiper
