Fusiblera del Motor (PRIMARY UNDER-HOOD FUSE BOX)
| N° | A | Descripción | |
|---|---|---|---|
| - | - | Sin identificar | |
| - | Sin identificar | ||
| - | Sin identificar | ||
| - | Sin identificar | ||
| - | Sin identificar | ||
| 1 | 10A | Left Headlight Low | |
| 2 | 30A | Rear Defroster Coil | |
| 3 | 10A | Left Headlight High | |
| 4 | 15A | Small Lights | |
| 5 | 10A | Right Headlight High | |
| 6 | 10A | Right Headlight Low | |
| 7 | 7.5A | Back Up | |
| 8 | 15A | FI ECU (PCM) | |
| 9 | 30A | Condenser Fan | |
| 11 | 30A | Cooling Fan | |
| 12 | 7.5A | MG Clutch | |
| 13 | 20A | Horn, Stop | |
| 14 | 30A | Rear Defroster | |
| 15 | 40A | Back Up, ACC | |
| 16 | 15A | Hazard | |
| 17 | 30A | VSA Motor | |
| 18 | 30A | VSA | |
| 19 | 30A | Option 1 | |
| 20 | 40A | Option 2 | |
| 21 | 40A | Heater Motor | |
| 22 | 70 amp= Passenger's Fuse Box / 120 amp Battery | ||
| 23 | 50 amp = IG1 Main/Power Window Main/ 40 amp=Power Window Main (For some types) |
Fusiblera del Motor (SECONDARY UNDER-HOOD FUSE BOX)
| N° | A | Descripción | |
|---|---|---|---|
| 2 | 40A | Left Power Sliding Door (For some types) | |
| 3 | 40A | Right Power Sliding Door (For some types) | |
| 4 | 40A | Power Tailgate (For some types) | |
| 5 | 20A | Premium | |
| 6 | 20A | AC Inverter | |
| 7 | 10A | Fog Light (For some types) | |
| 8 | 10A | ACM | |
| 11 | 7.5A | Rear Entertainment System (For some types) |

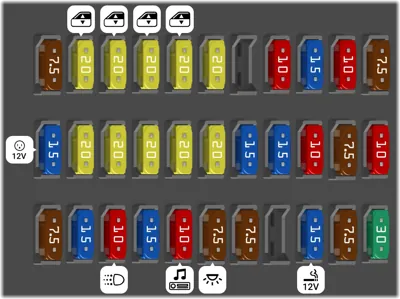

Fusiblera del habitáculo (Driver’s Side)
| N° | A | Descripción | |
|---|---|---|---|
| 1 | 7.5A | TPMS | |
| 2 | 15A | IG Coil | |
| 3 | 10A | Daytime Running Light (Canadian models) | |
| 4 | 15A | LAF | |
| 5 | 10A | Radio | |
| 6 | 7.5A | Interior Lights | |
| 7 | 7.5A | Back Up | |
| 9 | 15A | Front Accessory Socket | |
| 10 | 7.5A | OPDS | |
| 11 | 30A | IG Wiper | |
| 12 | 15A | Rear Accessory Socket | |
| 13 | 20A | Left Power Sliding Door Closer (For some types) | |
| 14 | 20A | Driver Power Seat Slide (For some types) | |
| 15 | 20A | Pedal Position Adjustment (For some types) | |
| 16 | 20A | Dr Power Seat Recline (For some types) | |
| 17 | 20A | Power Tailgate Closer (For some types) | |
| 18 | 15A | IG ACG | |
| 19 | 15A | IG Fuel Pump | |
| 20 | 10A | IG Washer | |
| 21 | 7.5A | IG Meter | |
| 22 | 10A | IG SRS | |
| 23 | 7.5A | IGP | |
| 24 | 20A | Left Rear Power Window | |
| 25 | 20A | Right Rear Power Window | |
| 26 | 20A | Passenger's Power Window | |
| 27 | 20A | Driver's Power Window | |
| 28 | 20A | Moonroof (For some types) | |
| 30 | 10A | IG HAC | |
| 31 | 15A | IG SOL | |
| 32 | 10A | ACC | |
| 33 | 7.5A | HAC OP |
Fusiblera del Habitáculo (UPPER AREA - Driver’s Side)
| N° | A | Descripción | |
|---|---|---|---|
| 1 | 7.5A | STS |
Fusiblera del Habitáculo (Passenger’s Side)
| N° | A | Descripción | |
|---|---|---|---|
| 1 | 30A | Rear Blower | |
| 3 | 15A | DBW | |
| 4 | 20A | Door Lock | |
| 6 | 15A | Heated Seat (For some types) | |
| 7 | 7.5A | Instrument Panel | |
| 8 | 20A | Right Power Sliding Door Closer (For some types) | |
| 9 | 15A | Front Accessory Socket |
