Caja de fusibles en el motor
| N° | A | Descripción | |
|---|---|---|---|
| - | (FOG LAMP) Luces antiniebla | ||
| - | (AIR CON) Aire acondicionado | ||
| - | (COND FAN) Ventilador del condensador de AC | ||
| - | (TAIL LAMP) Luces traseras | ||
| - | (HEAD LAMP) Faros | ||
| - | (POWER WINDOW) Ventanas eléctricas | ||
| 1 | 30A | (DEFOGGER) Desempañador trasero | |
| 2 | 20A | RR A/CON | |
| 3 | 30A | (P/WINDOW) Ventanas eléctricas | |
| 4 | 10A | (AIR CON) Aire acondicionado | |
| 5 | 10A | (HORN) Bocina | |
| 6 | 15A | F/LAMP | |
| 7 | 10A | (HEAD LAMP (LH)) Faro izquierdo | |
| 8 | 10A | (HEAD LAMP (RH)) Faro derecho | |
| 9 | 15A | INTER COOLER | |
| 10 | 15A | TALAMP | |
| 11 | 30A | (LAMP) Faros | |
| 12 | 50A | FUSE BOX | |
| 13 | 30A | FUSE BOX | |
| 14 | 30A | (IGN SW) Interruptor de encendido | |
| 15 | 50A | RLY BOX | |
| 16 | 30A | (C/FAN) Electroventilador de enfriamiento |

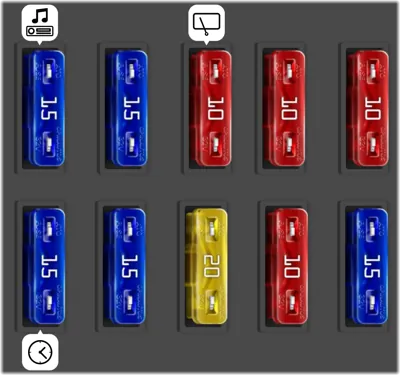

Caja de fusibles del habitáculo
| N° | A | Descripción | |
|---|---|---|---|
| 1 | 15A | CLOCK(B+), RADIO(B+), P/ANT, ROOM LAMP | |
| 2 | 15A | C/DOOR LOCK | |
| 3 | 20A | (BLOWER) Motor soplador de AC | |
| 4 | 10A | (STOP LAMP) Luces de freno | |
| 5 | 15A | (HAZARD LAMP) Luz de emergencia o balizas | |
| 6 | 15A | C/LIGHTER CLOCK, RADIO, POWER MIRROR, ACC SPARE TML | |
| 7 | 15A | (FRT WIPER, FRT WASHER) Limpiaparabrisas delanteros; Limpiaparabrisas | |
| 8 | 10A | RR WIPER, RR WASHER, A/CON, RR HEATER, TCI I/UP | |
| 9 | 10A | (B/UP LAMP, CLUSTER) Luces de reversa; Cuadro de instrumentos | |
| 10 | 10A | T/SIG LAMP |
