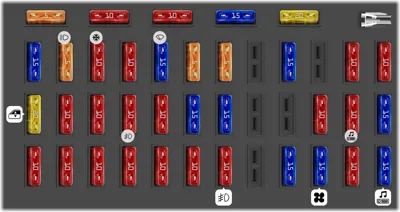

Herramienta para la extracción de los fusibles. |
| 1 |
|
15A |
WORKING LAMP |
| 2 |
|
5A |
(HEAD LP (RELAY)) Faros |
| 3 |
|
10A |
(A/CON) Aire acondicionado |
| 4 |
|
10A |
COLD START EXH. BRAKE HANDSFREE |
| 5 |
|
15A |
(WIPER WASHER) Limpiaparabrisas |
| 6 |
|
5A |
A.B.S (ECU) |
| 7 |
|
5A |
.P.T.O |
| 9 |
|
15A |
SUB START |
| 11 |
|
10A |
REVERSE LP |
| 12 |
|
10A |
CLUSTER ETACS ALTR (R) |
| 13 |
|
20A |
(P/WINDOW) Ventanas eléctricas |
| 14 |
|
10A |
STOP LP HORN |
| 15 |
|
10A |
HAZARD T/SIG LP CAB TILT'G |
| 16 |
|
10A |
(RR FOG LAMP) Luces antiniebla traseras |
| 17 |
|
10A |
C/DOOR LOCK |
| 18 |
|
15A |
A.B.S (VALVE) |
| 19 |
|
15A |
HEAT'G MIRROR |
| 22 |
|
10A |
KEYLESS ENTRY HANDSFREE |
| 23 |
|
10A |
ROOM LP T/GRAPH, AUDIO, CLOCK |
| 24 |
|
15A |
START MOTOR |
| 25 |
|
10A |
HEAD LP HEAD (DIM, LH) |
| 26 |
|
10A |
HEAD LP HEAD (DIM, RH) |
| 27 |
|
10A |
HEAD LP (MAIN, LH) |
| 28 |
|
10A |
HEAD LP (MAIN, RH) |
| 29 |
|
10A |
(TAIL LP (LH)) Luz trasera izquierda |
| 30 |
|
10A |
(TAIL LP (RH)) Luz trasera derecha |
| 31 |
|
10A |
(FOG LAMP) Luces antiniebla |
| 33 |
|
15A |
(CONDENSER FAN) Ventilador del condensador de AC |
| 34 |
|
15A |
(HEATER BLOWER) Motor soplador de AC |
| 35 |
|
10A |
12V CONVERTER KEYLESS ENTRY |
| 36 |
|
15A |
CIGAR, AUDIO/CLOCK |
| 37 |
|
5A |
(SPARE) Fusible de respuesto |
| 38 |
|
10A |
(SPARE) Fusible de respuesto |
| 39 |
|
10A |
(SPARE) Fusible de respuesto |
| 40 |
|
15A |
(SPARE) Fusible de respuesto |
| 41 |
|
20A |
(SPARE) Fusible de respuesto |
