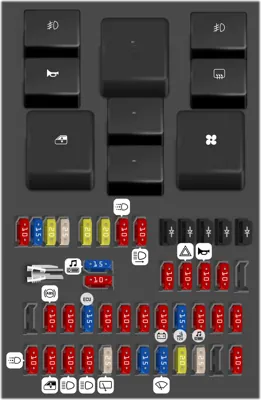

Herramienta para la extracción de los fusibles. |
| - |
|
|
(Front Fog Lamp Relay) Luces antiniebla delanteras |
| - |
|
|
(Rear Fog Lamp Relay) Luces antiniebla traseras |
| - |
|
|
(Horn Relay) Bocina |
| - |
|
|
(Rear Defogger Relay) Desempañador trasero |
| - |
|
|
(Tail Lamp Relay) Luces traseras |
| - |
|
|
Head Lamp High Relay (India) |
| - |
|
|
Flasher Unit |
| - |
|
|
(Power Window Relay) Ventanas eléctricas |
| - |
|
|
(Blower Relay) Motor soplador de AC |
| 1 |
|
10A |
(SPARE) Fusible de respuesto |
| 2 |
|
15A |
(SPARE) Fusible de respuesto |
| 3 |
|
20A |
(SPARE) Fusible de respuesto |
| 4 |
|
25A |
(SPARE) Fusible de respuesto |
| 5 |
|
20A |
(P/WDWI LH) Power Window Main Switch |
| 6 |
|
20A |
(P/WDWRH) Power Window Main Switch, Passenger Power Window switch |
| 7 |
|
10A |
(TAIL LP LH) Rear Combination Lamp LH, DRL Control Module, Head Lamp LH, License Lamp |
| 8 |
|
10A |
(TAIL LP RH) Rear Combination Lamp RH, Head Lamp RH |
| 14 |
|
15A |
(AUDIO B+) Audio |
| 15 |
|
10A |
(ROOMLP) SRS Control Module, Room Lamp Switch, Instrument Cluster(IND.), PTC Heater Control Module, Rear Fog Lamp Switch, Digital Clock, Door Warning Switch, Luggage Lamp, Overhead Console Lamp |
| 16 |
|
10A |
(STOP LP) Stop Lamp Switch |
| 17 |
|
10A |
(HAZARD) Hazard Switch, Hazard Relay |
| 18 |
|
10A |
(HORN) Horn Relay, Horn, Dual Horn |
| 19 |
|
10A |
(F/FOG LP) Front Fog Lamp Relay, Front Fog Lamp Switch, Front Fog Lamp LH/RH |
| 22 |
|
10A |
(ABS) ABS/ESP Control Module, Multipurpose Check Connector, ESP Switch |
| 23 |
|
10A |
(T/SIG LP) Hazard Switch |
| 24 |
|
15A |
(IG COIL) Vehicle Speed Sensor, Air Flow Sensor, Ignition Coil, ECM/PCM, Pulse Generator 'A', Fuel Filter Warning Switch, Fuel Heater Relay |
| 25 |
|
10A |
(B/UP LP) Back-up Lamp Switch, ATM Shift Lever, Transaxle Range Switch, Pulse Generator 'B' |
| 26 |
|
10A |
(A/BAG IND) Instrument Cluster(SRS/PAB IND.) |
| 27 |
|
10A |
(A/BAG) SRS Control Module |
| 28 |
|
10A |
(CLUSTER) Instrument Cluster(IND.), ETACM, TACM, Generator, EPS Control Module |
| 29 |
|
15A |
(CIGAR LIGHTER) Cigarette Lighter |
| 30 |
|
10A |
(AUDIO ACC) Digital Clock, Audio, Power Outside Mirror Switch |
| 31 |
|
10A |
(A/CON SW) A/C Switch |
| 32 |
|
10A |
(HTD IND) ECM, PCM Rear Defogger Switch |
| 33 |
|
10A |
(DRL) DRL Control Module |
| 34 |
|
10A |
(IG 2) Rear Defogger Relay, Power Window Relay, Head Lamp LH/RH, Head Lamp Leveling Switch, Intake Switch, ETACM, PTC Heater Control Module, PTC Heater Relay #2,#3, SRS Control Module, PTC Module, Blower Relay, Blower Switch |
| 35 |
|
10A |
(H/LP LH) Head Lamp LH, Instrument Cluster(High Beam) |
| 36 |
|
10A |
(H/LP RH) Head Lamp RH |
| 37 |
|
25A |
(FRT WIPER) Multifunction Switch(Wiper), Rear Wiper Motor, Sunroof Motor |
| 38 |
|
10A |
(RR FOG LP) Rear Fog Lamp Relay, Rear Fog Lamp Switch |
| 39 |
|
15A |
(SEAT HTD) Driver/Passenger Seat Heater Warmer Switch |
| 40 |
|
15A |
(RR WIPER) Multifunction Switch(Wiper). Rear Wiper Motor, Sunroof Motor |
| 41 |
|
20A |
(D/LOCK & S/ROOF) Door Lock Relay, Door Unlock Relay, ETACM, TACM, Driver Door Lock Actuator |
| 42 |
|
25A |
(HTD GLASS) Rear Defogger Relay, Rear Defoggger (+) |
| 44 |
|
10A |
(START) Start Relay, Burglar Alarm Relay |
