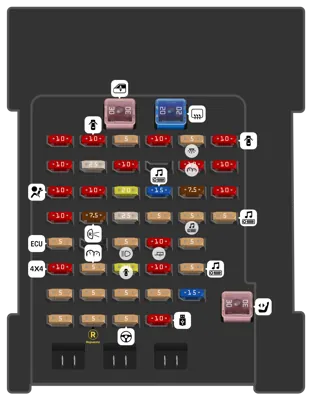

RELAY HEATER |
| - |
|
|
RELAY BLOWER CUT |
| - |
|
|
RELAY FOG LIGHT |
| - |
|
|
RELAY GLOW |
| - |
|
|
RELAY RR COOLER |
| - |
|
|
RELAY TAIL LIGHT |
| - |
|
|
RELAY RR FOG LIGHT |
| - |
|
|
RELAY SEN CONT PM |
| - |
|
|
RELAY SCR |
| - |
|
|
RELAY A/C COMP |
| - |
|
|
RELAY FRT WIPER(CONV)/WASHER(REV) |
| - |
|
|
RELAY STARTER CUT |
| - |
|
|
RELAY DIMMER/DCDC |
| - |
|
|
RELAY ISS STARTER/WASHER(CONV) |
| - |
|
|
RELAY DRL1 |
| - |
|
|
RELAY DRL2 |
| - |
|
|
RELAY IG |
| - |
|
|
RELAY H/LIGHT /RR WIPER |
| - |
|
|
RELAY STARTER |
| - |
|
|
RELAY HORN |
| - |
|
|
RELAY ECM MAIN |
| 1 |
|
30A |
BLOWE |
| 2 |
|
15A |
(4WD) Sistema de tracción en las cuatro ruedas |
| 3 |
|
10A |
DFF LOCK |
| 4 |
|
5A |
FRT SIDE RADAR |
| 5 |
|
5A |
(RR FOG) Luces antiniebla traseras |
| 6 |
|
15A |
(FRT FOG) Luces antiniebla delanteras |
| 7 |
|
20A |
(TRAILER) Remolque |
| 8 |
|
10A |
(RR WIPER) Limpiaparabrisas trasero |
| 9 |
|
20A |
(RR COOLER) Sistema de aire acondicionado trasero |
| 10 |
|
60A |
(GLOW) Calefactor de bujías incandescentes |
| 11 |
|
20A |
SCR1 |
| 14 |
|
10A |
NOX SENSOR |
| 15 |
|
10A |
(A/C) Aire acondicionado |
| 16 |
|
7.5A |
(SPARE) Fusible de respuesto |
| 17 |
|
15A |
(SPARE) Fusible de respuesto |
| 18 |
|
25A |
(SPARE) Fusible de respuesto |
| 19 |
|
5A |
(SPARE) Fusible de respuesto |
| 20 |
|
10A |
(SPARE) Fusible de respuesto |
| 21 |
|
20A |
(SPARE) Fusible de respuesto |
| 22 |
|
|
Herramienta para la extracción de los fusibles. |
| 23 |
|
5A |
(DRL) Luces de circulación diurna |
| 24 |
|
10A |
(IG) Protege varios circuitos |
| 25 |
|
10A |
(WASHER) Limpiaparabrisas |
| 25 |
|
20A |
FRT WIPER WASHER |
| 26 |
|
30A |
DCDC2/ABS2, ESC2 |
| 27 |
|
50A |
(STARTER) Sistema de arranque |
| 28 |
|
50A |
ABS1, ESC1 |
| 29 |
|
20A |
(FRT WIPER) Limpiaparabrisas delanteros |
| 30 |
|
15A |
DC DC HEV/TCM, DRM |
| 31 |
|
20A |
DC DC 1/+B |
| 32 |
|
5A |
(IBS) Sensor inteligente de carga de la batería |
| 33 |
|
5A |
ECM BACK LP |
| 34 |
|
10A |
(HORN) Bocina |
| 35 |
|
40A |
(ECM) Unidad de control del motor |
| 36 |
|
60A |
OPTION BOX |
| 37 |
|
15A |
TCM-DRM |
| 38 |
|
5A |
ISS |
| 39 |
|
15A |
(ENGINE) Sistema de control del motor |
| 40 |
|
10A |
H/LIGHT RH HI/PCV HEATER |
| 41 |
|
10A |
(H/LIGHT LH HI) Faro izquierdo de luz alta |
| 42 |
|
5A |
TCM/DRM |
| 43 |
|
10A |
(H/LIGHT RH LO) Faro derecho de luz baja |
| 44 |
|
10A |
(H/LIGHT LH LO) Faro izquierdo de luz baja |
| 45 |
|
10A |
(ABS) Sistema de frenos antibloqueo |
| 46 |
|
30A |
ABS2, ESC2 |
| 49 |
|
100A |
(EPS) Dirección asistida eléctrica |
| 50 |
|
100A |
SECONDARY POWER SOURCE |
