Kia Sorento / Fusibles 2011

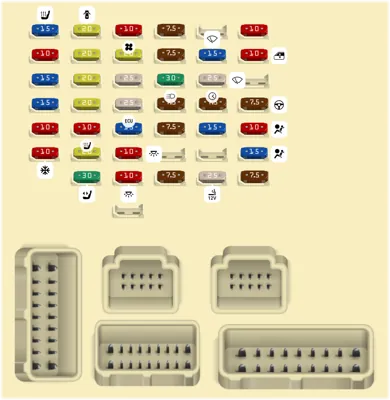

Panel de fusible Interior

Panel de fusible Interior
N°ADescripción
1 15A CALEFACTOR DEL ASIENTO TRASERO IZQ/DCH
2 20A BLOQUEO DE LA PUERTA, PORTÓN TRASERO
3 10A BOCINA DE LA ALARMA ANTIRROBO
4 7.5A REÓSTATO, IMS
6 10A PANEL DE INSTRUMENTOS, LLAVE SMART, MONITOR RSE, TPMS, ZUMBADOR DEL SISTEMA DE ASISTENCIA DE ESTACIONAMIENTO TRASERO, INTERRUPTOR ESP, INTERRUPTOR DBC, RELÉ "S1", SENSOR HLLD AUTOMÁTICO (4), ACTUADOR HLLD
7 10A INTERRUPTOR DEL MODO DEPORTIVO, ECU DE TRACCIÓN A LAS 4 RUEDAS
8 20A LAVAFAROS
9 20A MOTOR DEL AIRE ACONDICIONADO TRASERO
10 7.5A SISTEMA DEL AIRE ACONDICIONADO, IONIZADOR DEL PANEL DE INSTRUMENTOS, RELÉ DEL LAVAFAROS, UNIDAD PDM, CAJA DE VÍNCULOS DE FUSIBLES (RELÉ "S1" DEL PTC 3), SENSOR LLUVIA (1), UNIDAD MOTOR DE TECHO SOLAR (3), ECM (10)
11 15A LIMPIAPARABRISAS /LAVAPARABRISAS TRASERO
12 10A UNIDAD DEL SENSOR DEL NIVEL DE ACEITE (4), UNIDAD PDM (B9), LLAVE SMART (A14), ECU DE TRACCIÓN A LAS 4 RUEDAS, TCU (K3), INDICADOR DE CAMBIO DE MARCHA, ELEVALUNAS ELÉCTRICO
13 15A BCM(UNIDAD) DE INTERMITENTES B+: INTERMITENTE)
14 20A UNIDAD PDM / BOTÓN DE INICIO
15 25A ELEVALUNAS ELÉCTRICO DE SEGURIDAD
16 30A UNIDAD AMP (B+)
17 25A LIMPIAPARABRISAS/ LAVAPARABRISA DELANTERO
19 15A TAPA DEL COMBUSTIBLE, ACTUADOR DEL ENGANCHE DEL PORTÓN TRASERO
20 20A UNIDAD DEL MOTOR DEL TECHO SOLAR
21 25A INTERRUPTOR DEL ELEVALUNAS ELÉCTRICO
22 7.5A LUCES DIURNAS
23 7.5A ECU DE LA LLAVE SMART (9), INTERRUPTOR DEL RETROVISOR EXTERIOR, INTERRUPTOR DEL ELEVALUNAS ELÉCTRICO, MONITOR RSE, RELOJ DIGITAL, UNIDAD PDM (B4-ACC)
24 7.5A DIRECCIÓN ASISTIDA
25 10A RELÉ ANTINIEBLAS TRASERO (ICM), aLARMA DE PRESIÓN DE NEUMÁTICOS (TPMS), RETROVISOR EXTERIOR ABATIBLE, INTERRUPTOR DEL ELEVALUNAS ELÉCTRICO
26 10A SOPORTE DE LA LLAVE SMART, SOLENOIDE DE LA LLAVE, UNIDAD PDM
27 15A MODULO
28 7.5A AIRE ACONDICIONADO MANUAL, ECU (SEÑAL DEL VENTILADOR)
29 15A TOMA DE CORRIENTE CENTRAL
30 10A INDICADOR DEL AIRBAG, RECORDATORIO DEL CINTURÓN, RELOJ DIGITAL
31 10A MOTOR DEL RETROVISOR EXTERIOR, SISTEMA DEL AIRE ACONDICIONADO
32 20A CALEFACTOR DEL ASIENTO DELANTERO
33 10A LUZ INTERIOR
36 15A AIRBAG
37 30A ASIENTO ELÉCTRICO
38 10A LUZ DE LA PUERTA, INTERRUPTOR DEL ELEVALUNAS ELÉCTRICO
39 7.5A AIRE ACONDICIONADO AUTOMÁTICO (SISTEMA FATC) (VENTILADOR ON)
40 25A MECHERO, TOMA DE CORRIENTE DELANTERA
41 7.5A RELÉ DE LA SOLENOIDE DE INICIO 'S'

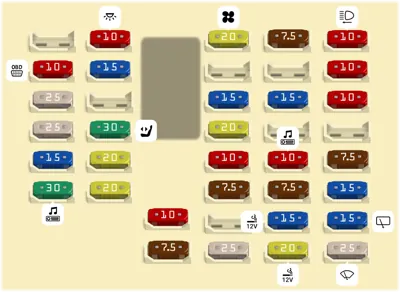

Fusiblera Interior (Type 2)

Fusiblera Interior (Type 2)
N°ADescripción
2 10A (MEMORY) Tire Pressure Monitor Module, Tilt Control Unit, Ultrasonic Sensor, Instrument Cluster (B +), Diagnostic Connector, Clock, A / C ECU. Off front CCS (climate control for seats) (left / right side), off left seat heater (left / right side), siren ECU, IMS water module, main switch. electric / glass, switch. electric / glass windows. doors pass., switch. Power Outside Mirror, ICM Relay Box (Folding / Unfolding Mirror Relay)
3 25A (P/ WDW LH) Relay electric driver's lift glass, main switch lift glass, left rear lift glass switch, driver safety lift glass module
4 25A (P/WDW RH) Relay right passenger lift glass, main switch lift glass Switch passenger lift glass, rear switch lift glass
5 15A (S/HEATER RR) ICM relay box (rear left / right seat heater relay)
6 30A (AMP) Amplifier
7 10A (INTERIOR LAMP) Luggage compartment lamp, sun lamp visor (left / right. Art.), ceiling console light, interior light, rear. lamp individual backlight (left / right. Art.), illuminated lock lock and a door opening sensor, a lamp st. threshold from side. water / pass., lamp door water / pass
8 15A (MEDIA AUDIO) Audio, A/V, MTS
10 30A (P/SEAT DRV) Driver's seat switch, driver's lumbar support switch
11 20A (P/SEAT PASS) Passenger Seat Switch
12 20A (S/HTR FRT) ECU CCS (climate control of seats) water / pass. Seat heating module water / pass.
13 10A (HTD MIRR) Outside power mirror driver / passenger (heated), front air conditioning control module
14 7.5A (START) E/R Fuse & Relay Box (Relay - Start, Aux Start, Burglar Alarm), PDM
15 20A (BLOWER RR) Rear air conditioner fan relay
17 15A (F/LID) Off fuel filler caps
18 20A (DR LOCK) Door Lock / Unlock Relay, ICM Relay Box (Unlock Relay), Driver / Passenger Door Lock Actuator, Rear Door Lock Actuator L/R
19 10A (SMART KEY 4) Start-stop button, electronic key ECU
20 7.5A (MODULE 1) Sport mode switch (gearshift lock solenoid), key lock solenoid
22 25A (SMART KEY_1) Control unit el. keys
23 7.5A (SMART KEY_2) Control unit el. keys
25 15A (A/BAG) SRS control module, PODS module
27 10A (MODULE 4) Audio system, audiovis. Goal. device with nav., ECU teleinf. MOZEN systems (MTS), amplifier, clock, switch. outside mirror with electric drive, main switch. electric / glass, switch. electric / glass windows. doors pass.
28 7.5A (SMART KEY_3) Control unit el. keys
29 15A (P/OUTLET 1) Main console tunnel power supply (socket, cigarette lighter)
30 20A (P/OUTLET 2) Cigarette Lighter Socket
31 10A (MODULE 2) Adapter block headlight correction systems, headlight (left / right side), alternator, active hood lift ECU, off brake light, headlight range control drive (left / right side), off. headlight range control, electro chrome mirror. rear type (ECM), sensor. sist. pom. at the park. per. stroke (left / right side), sensor. sist. pom. at the park. per. running (left / right side) (center), lane departure warning module, auto. headlight tilt correction, instrument cluster, audiovisual. Goal. device with navigation, diesel engine: fuel filter water sensor, diesel unit (relay 1), glow plug relay unit
32 10A (MODULE 3) Instrument cluster (clamped), A / C ECU, 4WD ECU, off ESC off DBC, pressure control module in tires, steering wheel angle sensor, ECU intel. sist. pom. when parking. main mirror. electric / glass, switch. electric / glass windows. doors pass., ECU teleinf. systems MOZEN (MTS), radar sist. detection of objects outside the zone of visibility of waters. (left / right side), rear dutch. help with the park. (left / right side), rear dutch. help with the park. (left / right side) (center), CCS ECU (climate control for seats) water / pass., seat heating module water / pass.
33 10A (A/BAG IND) Instrument Cluster (IND.), Digital Clock
35 7.5A (A / CON) Front A / C Control Module, Incar Active Sensor, lonizer, ICM Relay Box (Rear A / C Relay) E / R Fuse and Relay Box (Blower Relay)
36 15A (HTD STRG) Steering wheel heating
37 15A (WIPER RR) ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor, Multifunction Switch (Wiper)
38 25A (WIPER FRT) Fuse and relay box E/R (wiper relay (low)), front wiper motor, multifunction switch (wiper)

Fusiblera del motor

Fusiblera del motor
N°ADescripción
- (ECU) Unidad de control del motor
- (F/PUMP) Bomba de combustible
- (A/CON) Aire acondicionado
- (WIPER LO) Limpiaparabrisas
- (WIPER HI) Limpiaparabrisas
- (BLOWER) Motor soplador de AC
- (C/FAN1) Electroventilador de enfriamiento
- (START1) Sistema de arranque
- (C/FAN2) Electroventilador de enfriamiento
- (RR HTD) Desempañador trasero
- (DEICER) Descongelador o desempañador
- (HORN) Bocina
- (START2) Sistema de arranque
- (START3) Sistema de arranque
- (B/UP LP) Luces de reversa
1 20A (ECU 3) Unidad de control del motor
2 10A (SENSOR1) Sensores
3 10A (SENSOR2) Sensores
4 10A (SENSOR3) Sensores
5 15A (SENSOR4) Sensores
6 15A TCU1, ECU1
7 10A (A/CON) Aire acondicionado
8 15A F/ PUMP
9 30A (ECU) Unidad de control del motor
10 7.5A (B/UP LP) Luces de reversa
11 7.5A (ABS) Sistema de frenos antibloqueo
12 7.5A (ECU 2) Unidad de control del motor
13 50A I/P B+4
14 50A (C/FAN) Electroventilador de enfriamiento
16 15A (DEICER) Descongelador o desempañador
17 40A (IGN2) Encendido
18 30A (TRAILER) Remolque
20 30A (IGN1) Encendido
21 15A (HORN) Bocina
22 15A (STOP LP) Luces de freno
23 15A B+ SENSOR
25 I/P B+2
26 (BLOWER) Motor soplador de AC
27 (RR HTD) Desempañador trasero
28 (ABS1) Sistema de frenos antibloqueo
30 (ABS2) Sistema de frenos antibloqueo
31 I/P B+3
32 I/P B+1
33 175A (ALT) Sistema de carga
34 15A (SPARE) Fusible de respuesto
35 30A (SPARE) Fusible de respuesto
36 10A (SPARE) Fusible de respuesto
37 25A (SPARE) Fusible de respuesto
38 7.5A (SPARE) Fusible de respuesto
39 20A (SPARE) Fusible de respuesto
