Kia Sportage / Fusibles 2015

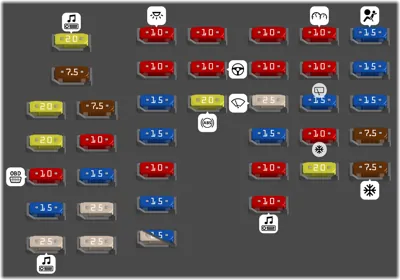

Fusiblera del Habitáculo

Fusiblera del Habitáculo
N°ADescripción
1 20A Audio
2 7.5A RF Receiver
3 20A Driver Safety Power Window Module
4 20A Driver Seat Manual Switch
5 10A Multipurpose Check Connector, Data Link Connector, Driver CCS Switch Rear Parking Assist Buzzer
6 15A Sunroof Motor, Sunroof Contro Module
7 25A Amp
8 7.5A ATM Shift Lever, Key Solenoid
9 10A (Not Used)
10 15A Driver CCS Seat Warmer
11 25A Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH
12 25A Rear Power Window Switch LH, Power Window Main Switch
13 10A BCM, Map Lamp, Room Lamp, Driver/Passenger Vanity Lamp, Electro Chromic Mirror, Luggage Lamp, Ignition Key ILL. & Door Warning Switch, Tire Pressure Monitoring Module, Instrument Cluster (MCU, IND.), A/C Control Module IPS Control Module (B+)
14 10A Start/Stop Button Switch, Smart Key Control Module
15 15A Door Lock Relay, Door Unlock Relay, Tail Gate Relay, ICM Relay Box (Two Turn Unlock Relay)
16 15A BCM
17 10A (Not Used)
18 15A Heated steering wheel
19 25A Smart Key Contro Module
20 10A Burglar Alarm Relay (With Burglar Alarm), E/R Fuse & Relay Box (Start Relay I W/O Burglar Alarm & Smart Key), Smart Key Control Module (W/O Burglar Alarm & With Smart Key)
21 10A EPS Control Module, ATM Shift Lever ILL. 4WD ECM, Stop Lamp Switch, IPS Control Module (IG1)
22 20A E/R Fuse & Relay Box (ECU 2 7.5A, ABS 7.5A, TCU 2 7.5A)
23 10A Instrument Cluster (A/Bag IND.)
24 10A Smart Key Control Module
25 25A Front Wiper Motor, Multifunction Switch (Wiper), E/R Fuse & Relay Box (Front Wiper (Low) Relay, Wiper (Rain Sensor) Relay)
26 15A Front Power Outlet RH
27 10A BCM, Smart Key Control Module
28 10A Audio, Amp, Sunroof Control Module, Power Outside Mirror Switch
29 10A Driver/Passenger Seat Warmer Switch, Driver CCS Control Module, Instrument Cluster, Tire Pressure Monitoring Module, Audio, Alternator, BCM, A/C Control Module, Telltale & SBR Lamp
30 10A BCM, Smart Key Control Module, IPS Contro Module (IG2)
31 15A Rear Wiper Motor, Multifunction Switch (Wiper), ICM Relay Box (Rear Wiper Relay)
32 10A Cluster lonizer, A/C Control Module, Rain Sensor, Sunroof Motor, Electro Chromic Mirror,E/R Fuse & Relay Box (Blower Relay)
34 15A SRS Control Module, Passenger Occupant Detection Sensor, Telltale & SBR Lamp
35 15A Driver/Passenger Seat Warmer Switch
36 15A Rear Seat Warmer LH/RH
37 7.5A A/C Control Module (Auto)
38 7.5A A/C Control Module, Driver/Passenger Power Outside Mirror

Fusiblera del Motor

Fusiblera del Motor
N°ADescripción
- Conector para el escaner de diagnóstico (OBD1)
- Herramienta para la extracción de los fusibles.
1 40A Cooling Fan (High) Relay, Cooling Fan (Low) Relay [MPI engine]
1 50A Cooling Fan (High) Relay, Cooling Fan (Low) Relay [T-GDI engine]
2 40A Rear Defogger Relay
4 30A PDM Relay Box (IGN1/ACC Relay I With Smart Key), Ignition Switch (W/O Smart Key)
5 40A PDM Relay Box (IGN2 Relay With Smart Key), Ignition Switch (W/O Smart Key)
6 20A Vacuum Pump Relay [T-GDI engine]
7 30A Engine Control Relay
8 EPS Control Module
9 V/P Junction Box (PDM A 25A, DR LOCK 15A, HAZARD 15A, IPS 4-7)
10 ESC Module
11 EMS Box (TCU 1 15A, ECU 30A, A/CON 10A, F/PUMP 15A)
12 ESC Module
13 Blower Relay
14 V/P Junction Box (P/SEAT(DRV) 20A, SAFETY POWER WINDOW 20A, PDM B 10A, ATM KLOCK 7.5A, SEAT VENT 15A, Power Connector (AUDIO 20A, RFANT 7.5A), ROOM LP 10A)
15 V/P Junction Box (Power Window Relay SUNROOF 15A, AMP 25A, MODULE B+ 10A, IPS 0-3, IPS 8-10)
16 7.5A Transaxle Range Switch [MPI engine], Transaxle Range Switch, Vacuum Switch, Vacuum Pump Relay [T-GDI engine]
17 7.5A ESC Module, ICM Relay Box (DBC Relay), Multi Switch
18 7.5A ATM P/N Relay, PCM, Multifunction Switch (Remote Control)
22 15A Fuel Pump Relay
23 15A Fuel Pump Relay, PCM, Oxygen Sensor Up)/(Down), E/R Fuse & Relay Box (Cooling Fan (High)/(Low) Relay)
24 10A ACON Relay, Injector #1-#4
25 10A (Not Used)
26 15A PCM
27 10A ACON Relay
28 10A Immobilizer Module, Crankshaft Position Sensor, Camshaft Position Sensor #1/#2, Oil Control Valve #1/#2Canister Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Close Valve [MPI engine], Immobilizer Module, Crankshaft Position Sensor, Camshaft Position Sensor #1/#2 Oil Control Valve #1/#2Canister Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Close Valve, RCV [T-GDI engine]
29 20A Ignition Coil #1-#4, Condenser
30 15A Horn Relay
31 15A Front Wiper Deicer Relay
32 10A Stop Lamp Switch, Smart Key Control Module, ICM Relay Box (DBC Relay)
33 20A 4WD ECU
34 10A Battery Sensor
