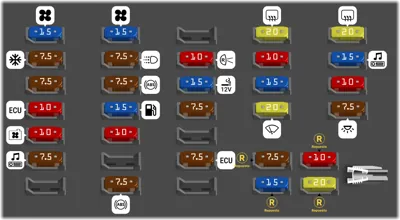

Herramienta para la extracción de los fusibles. |
| 1 |
|
15A |
Blower Motor |
| 2 |
|
15A |
Blower Motor |
| 4 |
|
20A |
Rear Window Defogger Relay |
| 5 |
|
20A |
Rear Window Defogger Relay |
| 6 |
|
7.5A |
Air Conditioner Relay, Thermo Control Amplifier, Air Conditioner Switch, Recirculation Switch |
| 7 |
|
7.5A |
Daytime Light, Smart Entrance Control Unit, Power Window Relay, Sun Roof Relay, Rear Window Defogger Relay, Rear Window Defogger Timer, ASCD Main Switch, ASCD Hold Relay |
| 8 |
|
10A |
Combination Meter, Back-Up Lamps, Position Switch, Inhibitor Switch |
| 9 |
|
10A |
Door Mirror Remote Control Switch |
| 10 |
|
15A |
Radio, SECU |
| 11 |
|
7.5A |
Hazard Switch |
| 12 |
|
7.5A |
ABS |
| 13 |
|
15A |
Cigarette Lighter |
| 14 |
|
15A |
Stop Lamp Switch |
| 15 |
|
10A |
Hazard Switch, Multi-Remote Control Relay 1, Multi-Remote Control Relay 2 |
| 16 |
|
10A |
Heated Oxygen Sensor, Engine Control Module |
| 17 |
|
15A |
Fuel Pump Relay |
| 18 |
|
7.5A |
Transmission Control Module (TCM) |
| 19 |
|
20A |
Front Wiper and Washer System |
| 20 |
|
7.5A |
Trunk Room Lamp, Interior Lamp, |
| 21 |
|
10A |
Theft Warning Relay, Inhibitor Relay, Cooling Fan, Engine Control Module |
| 22 |
|
10A |
Air Bag Diagnosis Sensor Unit |
| 24 |
|
7.5A |
Combination Meter (Smart Entrance Control Unit), Key Switch, Warning Chime, Audio |
| 26 |
|
7.5A |
Engine Control Module, Clutch Interlock Relay, Park/Neutral Position Relay, Theft Warning Relay, Daytime Light |
| 28 |
|
7.5A |
ABS |
| 30 |
|
7.5A |
Spare fuse |
| 31 |
|
10A |
Spare fuse |
| 32 |
|
15A |
Spare fuse |
| 33 |
|
20A |
Spare fuse |
