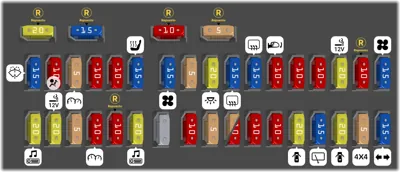

Interior Panel Fusebox
| N° | A | Descripción | |
|---|---|---|---|
| 1 | 20A | (AUDIO) Audio system | |
| 2 | 20A | (POWER_SOCKET) Cigar lighter / power outlet | |
| 3 | 5A | (ELEC_B) Protects several circuits | |
| 4 | 10A | (METER_B) Instrument cluster | |
| 5 | 10A | WOOFER / SPARE | |
| 6 | 20A | (BOSE) Audio system | |
| 7 | EXTENDED STORAGE SW | ||
| 8 | 10A | (STOP_LAMP) Stop lights | |
| 9 | 5A | (IMMOBI_ANT) Anti-theft system | |
| 10 | 5A | (STEERING HEATER) Heated steering wheel | |
| 10 | 10A | CLUCH_SW | |
| 11 | 10A | (BCM) Body control module | |
| 12 | 10A | (ELEC_B) Protects several circuits | |
| 13 | 20A | (PWR_DR_LOCK) Power door lock system | |
| 14 | 15A | (RR_WIP) Rear wiper | |
| 15 | 20A | (PWR_DR_LOCK_2) Power door lock system | |
| 16 | 5A | (4WD) All wheel drive system | |
| 17 | 15A | (TURN_HAZ) Turn signal and hazard lights | |
| 18 | 15A | (WASH_MTR) Windshield washer | |
| 19 | 10A | (AIR_BAG) Airbag | |
| 20 | 5A | (METER_IG) Instrument cluster | |
| 21 | 10A | ELEC_IG_POWER | |
| 22 | 10A | DC_DC / ELEC_IG_POWER2 | |
| 23 | 15A | (HEATER_SEAT) Seat heater | |
| 24 | 15A | (BLOWER) AC blower motor | |
| 25 | 5A | (ILL) Illumination | |
| 26 | 20A | (ROOM_LAMP) Dome light and interior light | |
| 27 | 15A | (RR_DEF) Rear window defogger | |
| 28 | 15A | (RR_DEF) Rear window defogger | |
| 29 | 10A | H / MIRROR | |
| 30 | 10A | (VDC) Vehicle dynamics control solenoid | |
| 31 | 10A | ELEC_AUTO_ACC | |
| 32 | 20A | (CIG_LIGHTER) Cigar lighter / power outlet | |
| 33 | 10A | (SPARE) Spare fuse | |
| 34 | 15A | (BLOWER) AC blower motor | |
| 35 | 20A | (SPARE) Spare fuse | |
| 36 | 15A | (SPARE) Spare fuse | |
| 37 | 10A | (SPARE) Spare fuse | |
| 38 | 5A | (SPARE) Spare fuse |
Engine Compartment Fuse box
| N° | A | Descripción | |
|---|---|---|---|
| 51 | 10A | Active Grille Shutter, Engine Control Module | |
| 52 | 15A | Engine Control Module, EVAP Canister Purge Volume Control Solenoid Valve, Engine Coolant Bypass Valve Control Solenoid Valve, Fuel Heater and Water in Fuel Level Sensor, High Pressure Fuel Pump, Condenser, Ignition Coils, Exhaust Valve Timing Control Solenoid Valve, Intake Valve Timing Control Solenoid Valve, Fuel Injector Relay, High Pressure Fuel Pump Relay, Mass Air Flow Sensor, Heated Oxygen Sensor, Turbocharger Waste Gate Control Solenoid Valve, Air Fuel Ratio Sensor, Fuel Flow Actuator, Turbocharger Boost Control Solenoid Valve, Intake Valve Timing Intermediate Solenoid Valve, Intake Valve Timing Control Solenoid Valve, Turbocharger Bypass Control Valve, Engine Oil Pressure Control Solenoid Valve | |
| 53 | 15A | MR: Throttle Control Motor Relay | |
| 54 | 10A | Engine Control Module, Engine Coolant Bypass Valve Control Solenoid Valve, Intake Valve Timing Control Solenoid Valve, Engine Oil Pressure Control Solenoid Valve, Exhaust Valve Timing Control Solenoid Valve, Turbocharger Bypass Valve Control Solenoid Valve, Intake Manifold Runner Control Valve | |
| 55 | 15A | Engine Control Module, Heated Oxygen Sensor, Thermostat Heater Control Solenoid Valve, Glow Control Unit, Turbocharger Boost Control Solenoid, Air Fuel Ratio Sensor, Fuel Flow Actuator, Intake Manifold Runner Control Valve | |
| 56 | 15A | Engine Control Module, Steering Lock Unit | |
| 57 | 15A | Air Conditioner Relay | |
| 58 | 10A | Engine Control Module, Engine Restart Relay | |
| 60 | 30A | Front Wiper Hi/Lo Relay | |
| 61 | 20A | Fuel Pump Relay | |
| 63 | 10A | Transmission Control Module (TCM), Primary Speed Sensor, Output Speed Sensor, Transmission Range Switch, Input Speed Sensor, lpdm E/R, Secondary Speed Sensor | |
| 65 | 5A | Engine Control Module, Steering Lock Unit | |
| 66 | 10A | Airbags, ABS system | |
| 67 | 10A | Headlamp Aiming Motor, Compressor, Transmission Range Switch, Front Window Defogger RH Relay, Front Window Defogger LH Relay, Reverse / Neutral Position Switch, Back-Up Lamp Switch, Neutral Position Switch |
Panel de Fusibles del Motor
| N° | A | Descripción | |
|---|---|---|---|
| - | Unidad de Control EPS | ||
| - | ABS, VDC SOL | ||
| - | Unidad de Control EPS | ||
| - | 30A | Relé del Limpiador de Faros | |
| - | ABS, Motor VDC | ||
| - | Relé de Arranque, Relé de Encendido (Fusible: "1", "2", "3", "4", "10", "11", "12") | ||
| - | Relé de Ventana Eléctrica, Interruptor Principal de Ventana Eléctrica, Conjunto del Motor de Parasol, Interruptor de Asiento Eléctrico | ||
| - | Relé del claxon | ||
| 31 | 15A | Claxon | |
| 32 | 30A | Relé PTC 2 [Diésel] | |
| 33 | 30A | Relé PTC 3 [Diésel] | |
| 34 | 30A | Relé PTC 1 [Diésel] | |
| 35 | 30A | Unidad de Control del Freno de Estacionamiento Eléctrico | |
| 36 | 30A | Conector de Opción, Remolque | |
| 37 | 15A | Claxon Antirrobo | |
| 38 | 30A | Unidad de Control del Freno de Estacionamiento Eléctrico |
