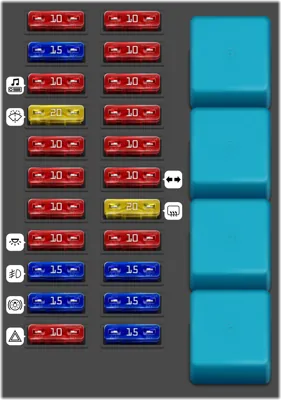

Fusiblera del Habitáculo
| N° | | A | Descripción |
|---|
| 1 |
|
10A |
ENG CONTROL |
| 2 |
|
15A |
F/PUMP A/CHOKE |
| 3 |
|
10A |
AUDIO |
| 4 |
|
20A |
WIPER WASHER |
| 5 |
|
10A |
ALARM UNIT |
| 6 |
|
10A |
TAIL LAMP |
| 7 |
|
10A |
AIR CON |
| 8 |
|
10A |
ROOM LAMP |
| 9 |
|
15A |
FR FOG LAMP |
| 10 |
|
15A |
STOP LAMP |
| 11 |
|
10A |
HAZARD LAMP |
| 12 |
|
10A |
ELECTRO NICS (IG) |
| 13 |
|
10A |
ELECTRO NICS (B) |
| 14 |
|
10A |
ST SIGNAL |
| 15 |
|
10A |
METER |
| 16 |
|
10A |
ELECTRO IGN |
| 17 |
|
10A |
TURN SIGNAL |
| 18 |
|
20A |
REAR DEFOGGER |
| 19 |
|
10A |
R/C MIRROR |
| 20 |
|
15A |
CIG LIGHT |
| 21 |
|
15A |
BLOWER MOTOR1 |
| 22 |
|
15A |
BLOWER MOTOR2 |
Caja de fusibles del compartimiento del motor
| N° | | A | Descripción |
|---|
| - |
|
|
HORN |
| 1 |
|
|
DIESEL |
| 2 |
|
15A |
FR- DEFOG |
| 3 |
|
10A |
GLOW |
| 4 |
|
25A |
ENGINE CONT |
| 5 |
|
30A |
IGN SW |
| 6 |
|
30A |
POWER WINDOW |
| 7 |
|
30A |
ABS MTR |
| 8 |
|
30A |
RAD FAN |
| 9 |
|
15A |
H/LAMP RH |
| 10 |
|
15A |
H/LAMP LH |
| 11 |
|
10A |
HORN |
| 12 |
|
20A |
ABS SOL |
