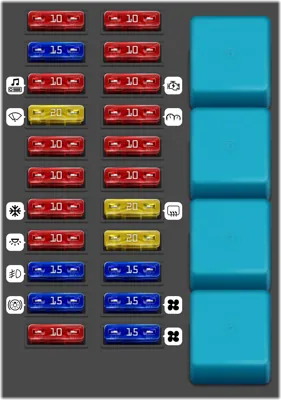

Fusiblera del Habitáculo (versión 1)
| N° | A | Descripción | |
|---|---|---|---|
| 1 | 10A | (ENG CONTROL) Sistema de control del motor | |
| 2 | 15A | F/PUMP A/CHOKE | |
| 3 | 10A | (AUDIO) Sistema de audio | |
| 4 | 20A | (WIPER WASHER) Limpiaparabrisas | |
| 5 | 10A | ALARM UNIT | |
| 6 | 10A | (TAIL LAMP) Luces traseras | |
| 7 | 10A | (AIR CON) Aire acondicionado | |
| 8 | 10A | (ROOM LAMP) Luz de domo y luz interior | |
| 9 | 15A | (FR FOG LAMP) Luces antiniebla delanteras | |
| 10 | 15A | (STOP LAMP) Luces de freno | |
| 11 | 10A | (HAZARD LAMP) Luz de emergencia o balizas | |
| 12 | 10A | ELECTRO NICS (IG) | |
| 13 | 10A | ELECTRO NICS (B) | |
| 14 | 10A | (ST SIGNAL) Sistema de arranque | |
| 15 | 10A | (METER) Cuadro de instrumentos | |
| 16 | 10A | ELECTRO IGN | |
| 17 | 10A | (TURN SIGNAL) Luces de giro o guiño | |
| 18 | 20A | (REAR DEFOGGER) Desempañador trasero | |
| 19 | 20A | R/C MIRROR | |
| 20 | 15A | CIG LIGHT | |
| 21 | 15A | (BLOWER MOTOR1) Motor soplador de AC | |
| 22 | 15A | (BLOWER MOTOR2) Motor soplador de AC |

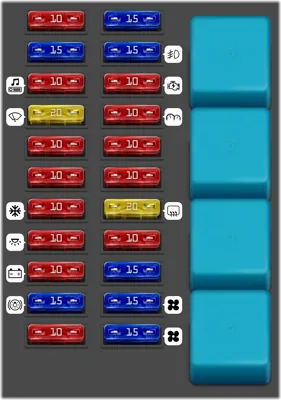

Fusiblera del Habitáculo (versión 2)
| N° | A | Descripción | |
|---|---|---|---|
| 1 | 10A | (ENG CONTROL) Sistema de control del motor | |
| 2 | 15A | F/PUMP A/CHOKE | |
| 3 | 10A | (AUDIO) Sistema de audio | |
| 4 | 20A | (WIPER WASHER) Limpiaparabrisas | |
| 5 | 10A | ALARM UNIT | |
| 6 | 10A | (TAIL LAMP) Luces traseras | |
| 7 | 10A | (AIR CON) Aire acondicionado | |
| 8 | 10A | (ROOM LAMP) Luz de domo y luz interior | |
| 9 | 10A | (ALTERNATOR) Sistema de carga | |
| 10 | 15A | (STOP LAMP) Luces de freno | |
| 11 | 10A | (HAZARD LAMP) Luz de emergencia o balizas | |
| 12 | 15A | (O2 SENSOR) Sensor de oxÃgeno | |
| 13 | 15A | (FRONT FOG LAMP) Luces antiniebla delanteras | |
| 14 | 10A | (ST SIGNAL) Sistema de arranque | |
| 15 | 10A | (METER) Cuadro de instrumentos | |
| 16 | 10A | ELECTRO IGN | |
| 17 | 10A | (TURN SIGNAL) Luces de giro o guiño | |
| 18 | 20A | (REAR DEFOGGER) Desempañador trasero | |
| 19 | 10A | R/C MIRROR | |
| 20 | 15A | CIG LIGHT | |
| 21 | 15A | (BLOWER MOTOR1) Motor soplador de AC | |
| 22 | 15A | (BLOWER MOTOR2) Motor soplador de AC |
Caja de fusibles del compartimiento del motor
| N° | A | Descripción | |
|---|---|---|---|
| - | HORN | ||
| 1 | DIESEL | ||
| 2 | 15A | FR- DEFOG | |
| 3 | 10A | GLOW | |
| 4 | 25A | ENGINE CONT | |
| 5 | 30A | IGN SW | |
| 6 | 30A | POWER WINDOW | |
| 7 | 30A | ABS MTR | |
| 8 | 30A | RAD FAN | |
| 9 | 15A | H/LAMP RH | |
| 10 | 15A | H/LAMP LH | |
| 11 | 10A | HORN | |
| 12 | 20A | ABS SOL |
