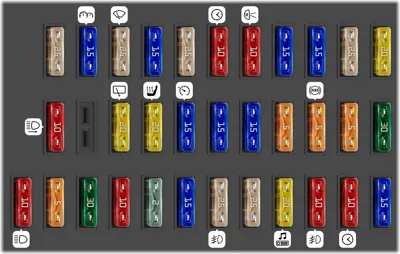

| 1 |
|
25A |
Central locking |
| 2 |
|
15A |
Instrument cluster / airbag / seat belt pretensioners / decoder / burglar alarm / driver seat memory |
| 3 |
|
25A |
Windshield wiper and washer motors |
| 4 |
|
15A |
Direction indicators / Alarm |
| 5 |
|
25A |
Reverse electromagnetic braking of the windshield wiper motor |
| 6 |
|
10A |
Clock / storage devices of electronic units and radio receiver / electric drive of rear-view mirrors / alarm siren |
| 7 |
|
10A |
Reversing lights (for models with an automatic transmission) |
| 8 |
|
15A |
High beam left headlight |
| 9 |
|
15A |
High beam of the right headlight |
| 10 |
|
25A |
Buzzer |
| 11 |
|
20A |
Electric fan of the engine cooling system |
| 12 |
|
10A |
Right side lamp / buzzer-signaling device about non-switched off lighting / instrument panel illumination / instrument panel illumination dimmer / day-night switching relay / lamp health control unit |
| 13 |
|
- |
Vacio |
| 14 |
|
20A |
Rear window wiper motor / rear window defroster / electric windshield defroster / reversing lights / buzzer – light off / heater controls |
| 15 |
|
20A |
Seat heaters |
| 16 |
|
15A |
Brake lights / cruise control / relay-interrupter of direction indicators and alarm / lamp health control unit |
| 17 |
|
15A |
Low beam left headlight / remote headlight range control |
| 18 |
|
15A |
Low beam of the right headlight |
| 19 |
|
5A |
Automatic transmission |
| 20 |
|
5A |
ABS |
| 21 |
|
5A |
Adaptive power steering |
| 22 |
|
30A |
“+” after ignition switch |
| 23 |
|
10A |
Left rear side light / lighting / lamp health control unit |
| 24 |
|
5A |
Mobile phone |
| 25 |
|
30A |
Roof hatch motor |
| 26 |
|
10A |
Heated side mirrors |
| 27 |
|
2A |
injection system |
| 28 |
|
15A |
Interior and trunk lights / child safety switch / burglar alarm |
| 29 |
|
25A |
Fog lights |
| 30 |
|
25A |
Driver’s seat memory |
| 31 |
|
20A |
Radio / heater controls / Renault lagoon cigarette lighter fuse 1. |
| 32 |
|
10A |
Rear fog lamp |
| 33 |
|
10A |
Clock and display light / burglar alarm / driver’s seat position memory |
| 34 |
|
15A |
Shock absorbers of variable stiffness |
