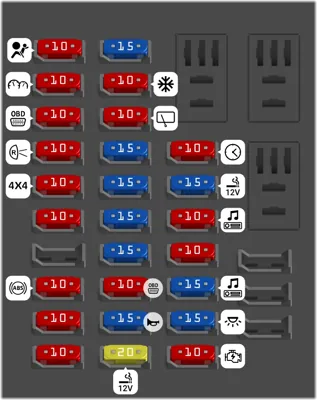

| 1 |
|
|
(BAT) Sistema de carga |
| 2 |
|
50A |
(IP BAT) Cuadro de instrumentos |
| 3 |
|
40A |
(IGN SW) Interruptor de encendido |
| 4 |
|
60A |
GLOW DSL ONLY |
| 5 |
|
40A |
(STARTER) Sistema de arranque |
| 6 |
|
7.5A |
A/S FUSE |
| 7 |
|
10A |
A/S FUSE |
| 8 |
|
15A |
A/S FUSE |
| 9 |
|
20A |
A/S FUSE |
| 10 |
|
30A |
A/S FUSE |
| 11 |
|
15A |
(HORN) Bocina |
| 12 |
|
30A |
(ABS 2) Sistema de frenos antibloqueo |
| 13 |
|
40A |
(BLOWER) Motor soplador de AC |
| 14 |
|
15A |
(H/LP(LO)(RH)) Faro derecho de luz baja |
| 15 |
|
20A |
(DRV SEAT) Asiento de ajuste eléctrico |
| 16 |
|
20A |
(SPARE) Fusible de respuesto |
| 17 |
|
10A |
(SMART KEY) Sistema de llave inteligente |
| 18 |
|
15A |
(H/LP(LO)(LH)) Faro izquierdo de luz baja |
| 19 |
|
40A |
(PTC1) Calefactor adicional AC |
| 20 |
|
10A |
(TAIL (LH)) Luz trasera izquierda |
| 21 |
|
10A |
(TAIL (RH)) Luz trasera derecha |
| 22 |
|
30A |
MAN |
| 23 |
|
20A |
(STOP) Luces de freno |
| 24 |
|
20A |
(H/LP (HI)) Faros de luz alta |
| 25 |
|
15A |
(SPARE) Fusible de respuesto |
| 26 |
|
20A |
(FUEL PUMP [GSL]) Bomba de combustible |
| 26 |
|
30A |
(F/HEATER [DSL]) Calefactor de combustible |
| 27 |
|
50A |
PTC2 [DSL] SAP [GSL] |
| 28 |
|
15A |
(INJECTOR) Inyectores de combustible |
| 29 |
|
15A |
(SENSOR) Sensores |
| 30 |
|
15A |
(SUN ROOF) Techo solar |
| 31 |
|
40A |
(PTC3 [DSL ONLY]) Calefactor adicional AC |
| 32 |
|
30A |
(MEMORY) Memoria |
| 33 |
|
15A |
(FRT FOG) Luces antiniebla delanteras |
| 34 |
|
20A |
(WIPER) Limpiaparabrisas |
| 35 |
|
10A |
(MIRR HTD) Calefactor de espejo |
| 36 |
|
15A |
(DEICER) Descongelador o desempañador |
| 37 |
|
30A |
(DEFOGGER) Desempañador trasero |
| 38 |
|
25A |
(P/WINDOW (LH)) Ventanas eléctricas |
| 39 |
|
25A |
(P/WINDOW (RH)) Ventanas eléctricas |
| 40 |
|
40A |
(C/FAN (LO)) Ventilador del radiador velocidad baja |
| 41 |
|
40A |
(ABS1) Sistema de frenos antibloqueo |
| 42 |
|
7.5A |
OSIDE |
| 43 |
|
10A |
(COMPRESSOR) Compresor de aire acondicionado |
| 44 |
|
20A |
AMD |
| 45 |
|
|
RELAY3 H/LP(LO) |
| 46 |
|
|
RELAY2 PTC1 (DSL ONLY) |
| 47 |
|
|
RELAY4 H/LP(HI) |
| 48 |
|
|
RELAY9 MAIN |
| 49 |
|
|
RELAY5 STARTER |
| 50 |
|
|
RELAY1 DEFOGGER |
| 51 |
|
|
RELAY12 BLOWER |
| 52 |
|
|
RELAY10 FUEL PUMP [GSL] F/HEATER [DSL] |
| 53 |
|
|
RELAY11 COMPRESSOR |
| 54 |
|
|
RELAY6 P/WINDOW |
| 55 |
|
|
RELAY14 C/FAN(HI) |
| 56 |
|
|
RELAY13 C/FAN (5P) |
| 57 |
|
|
RELAY7 C/FAN(LO) |
| 58 |
|
40A |
(C/FAN (HI)) Ventilador del radiador velocidad alta |
| 59 |
|
|
(FUSEPULLER) Sacafusibles |
