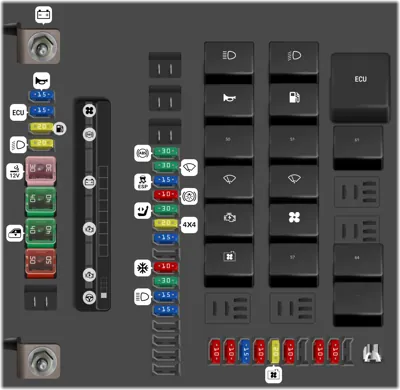

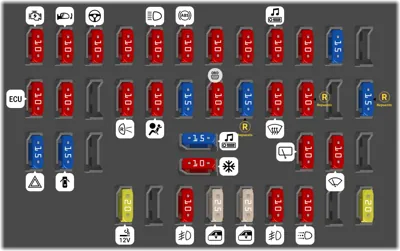

| 1 |
|
|
(ALT) Sistema de carga |
| 2 |
|
15A |
(HORN) Bocina |
| 3 |
|
15A |
(ENG ECU) Unidad de control del motor |
| 4 |
|
20A |
(FUEL PUMP) Bomba de combustible |
| 5 |
|
20A |
(HI LAMP LO) Faros de luz baja |
| 6 |
|
30A |
(POWER OULET) Enchufes de corriente auxiliares |
| 7 |
|
40A |
COOLING FANG |
| 8 |
|
40A |
(POWER WINDOW) Ventanas eléctricas |
| 9 |
|
50A |
B+1 |
| 10 |
|
|
B+ |
| 11 |
|
|
(BLOWER) Motor soplador de AC |
| 12 |
|
|
(ABS 1) Sistema de frenos antibloqueo |
| 13 |
|
|
B+2 |
| 14 |
|
|
(ALT) Sistema de carga |
| 15 |
|
|
U1 |
| 16 |
|
|
(IGN 2 START) Encendido |
| 17 |
|
|
ING MAN |
| 18 |
|
|
(IGN 1) Encendido |
| 19 |
|
|
(EPS) Dirección asistida eléctrica |
| 23 |
|
30A |
(ABS 2) Sistema de frenos antibloqueo |
| 24 |
|
30A |
(WIPER) Limpiaparabrisas |
| 25 |
|
15A |
ASC |
| 26 |
|
10A |
(STOP LAMP) Luces de freno |
| 27 |
|
30A |
(POWER SEAT) Asiento de ajuste eléctrico |
| 28 |
|
20A |
(AWD) Sistema de tracción en las cuatro ruedas |
| 29 |
|
15A |
(TCU) Unidad de control de transmisión |
| 31 |
|
10A |
(AIR CON) Aire acondicionado |
| 32 |
|
30A |
RR MDT |
| 33 |
|
15A |
(HI LAMP HI) Faros de luz alta |
| 34 |
|
15A |
(TAIL LAMP) Luces traseras |
| 35 |
|
10A |
(HI LAMP LH) Faro izquierdo de luz alta |
| 36 |
|
10A |
(HI LAMP RH) Faro derecho de luz alta |
| 37 |
|
15A |
ENG INJECTOR |
| 38 |
|
10A |
(ENG SENSOR) Sensores |
| 39 |
|
20A |
(ENG COOL) Electroventilador de enfriamiento |
| 40 |
|
10A |
(HTD MIRROR) Calefactor de espejo |
| 42 |
|
10A |
(TAIL LH) Luz trasera izquierda |
| 43 |
|
10A |
(TAIL RH) Luz trasera derecha |
| 45 |
|
|
(FUSEPULLER) Sacafusibles |
| 46 |
|
|
(HEAD LAMP HI RELAY) Faros de luz alta |
| 47 |
|
|
HEAD LAMP LO RELAY |
| 48 |
|
|
(HORN RELAY) Bocina |
| 49 |
|
|
(FUEL PUMP RELAY) Bomba de combustible |
| 50 |
|
|
AIRCOND RELAY |
| 51 |
|
|
(TAIL LAMP RELAY) Luces traseras |
| 52 |
|
|
(WIPER HI RELAY) Limpiaparabrisas |
| 53 |
|
|
(WIPER LO RELAY) Limpiaparabrisas |
| 54 |
|
|
(START RELAY RELAY) Sistema de arranque |
| 55 |
|
|
(BLOWER RELAY) Motor soplador de AC |
| 56 |
|
|
COOLING FAN HI RELAY |
| 57 |
|
|
COOLING FANG RELAY |
| 60 |
|
|
(ENGINE MAIN RELAY) Sistema de control del motor |
| 61 |
|
|
TAIL LAMP INTERIOR RELAY |
| 64 |
|
|
RR HDT RELAY |
