(HEAD) Faros |
| - |
|
|
STOP LP CTRL |
| - |
|
|
C/OPN |
| - |
|
|
(EFI) Sistema de inyección de combustible multipuerto |
| - |
|
|
(ABS MTR) Sistema de frenos antibloqueo |
| - |
|
|
TRC MTR |
| - |
|
|
(ABS SOL) Solenoide del sistema de frenos antibloqueo |
| - |
|
|
(FR FOG) Luces antiniebla delanteras |
| - |
|
|
STA |
| - |
|
|
(IG) Protege varios circuitos |
| - |
|
|
(DEFOG) Desempañador trasero |
| - |
|
|
(MG CLT) Embrague magnético de A/C |
| - |
|
|
(HEATER) Sistema de aire acondicionado |
| - |
|
|
ACC CUT |
| - |
|
|
(DOME) Luz de domo y luz interior |
| - |
|
|
A/F HEATER |
| - |
|
|
(FUEL PUMP) Bomba de combustible |
| - |
|
|
AC 115V INV |
| - |
|
|
Herramienta para la extracción de los fusibles. |

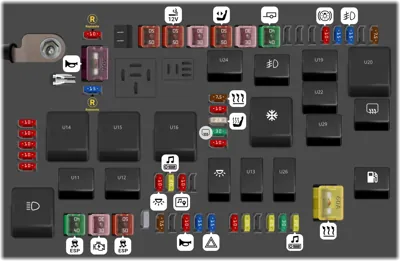

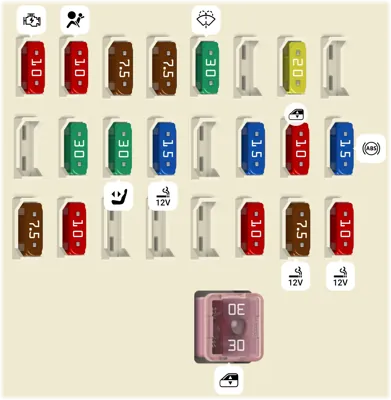

| 1 |
|
10A |
(SPARE) Spare fuse |
| 2 |
|
15A |
(SPARE) Spare fuse |
| 3 |
|
10A |
(STOP) Stop/tail lights, high mounted stoplight, shift lock control system, anti-lock brake system, traction control system [two-wheel drive models], active traction control system [four-wheel drive models], vehicle stability control system, rear height control air suspensión, multiport fuel injection system/sequential multiport fuel injection system, trailer brake controller, trailer lights (tail lights) |
| 4 |
|
15A |
(AC115V INV) AC inverter |
| 5 |
|
15A |
(FR FOG) Front fog lights |
| 6 |
|
7.5A |
(OBD) On-board diagnosis system |
| 7 |
|
10A |
(HEAD (LO RH)) Right-hand headlight (low beam) |
| 8 |
|
10A |
(HEAD (LO LH)) Left-hand headlight (low beam) |
| 9 |
|
10A |
(HEAD (HI RH)) Right-hand headlight (high beam) |
| 10 |
|
10A |
(HEAD (HI LH)) Left-hand headlight (high beam) |
| 11 |
|
10A |
(EFI NO.2) Multiport fuel injection system/sequential multiport fuel injection system |
| 12 |
|
7.5A |
(HEATER NO.2) Air conditioning system |
| 13 |
|
10A |
(AIRSUS NO.2) Rear height control air suspensión |
| 14 |
|
25A |
(SEAT HEATER) Seat heaters |
| 15 |
|
30A |
(DEFOG) Back window defogger, multiport fuel injection system/sequential multiport fuel injection system |
| 16 |
|
10A |
(MIR HEATER) Outside rear view mirror heater |
| 17 |
|
10A |
(DOME) Interior light, personal lights, wireless remote control system, door courtesy lights, rear seat audio system, gauge and meter, vanity lights, instrument panel lights, running board lights, multiplex communication system |
| 18 |
|
20A |
(RADIO NO.1) Audio system, navigation system |
| 19 |
|
10A |
(ECU-B) Anti-lock brake system, navigation system, traction control system [two-wheel drive models], active traction control system [four-wheel drive models], vehicle stability control system, air conditioning system, multiplex communication system, theft deterrent system |
| 20 |
|
7.5A |
(ALT-S) Charging system |
| 21 |
|
10A |
(HORN) Horns |
| 22 |
|
15A |
(A/F HEATER) A/F sensor |
| 23 |
|
15A |
(TRN-HAZ) Turn signal lights, emergency flashers |
| 24 |
|
10A |
(ETCS) Multiport fuel injection system/sequential multiport fuel injection system |
| 25 |
|
20A |
(EFI) Multiport fuel injection system/sequential multiport fuel injection system |
| 26 |
|
20A |
(DR/LCK) Power door lock system |
| 27 |
|
30A |
(TOWING) Towing converter |
| 28 |
|
20A |
(RADIO NO.2) Audio system |
| 46 |
|
50A |
(AIRSUS) Rear height control air suspensión |
| 47 |
|
50A |
(AM1) All components in "ACC", "CIG", "IG1", "ECU-IG", "FR WIP-WSH", "RR WIP", "RR-WSH", "4WD", and "STA" fuses |
| 48 |
|
30A |
(TOWING BRK) Trailer brake controller |
| 49 |
|
50A |
(J/B) All components in "PWR OUTLET", "D P/SEAT", "P P/SEAT","POWER", "TAIL" and "SECU/HORN" fuses |
| 50 |
|
30A |
(BATT CHG) Trailer sub battery |
| 51 |
|
40A |
(TOWING) Trailer lights (tail lights) |
| 52 |
|
40A |
(ABS MTR) Anti-lock brake system, traction control system [two-wheel drive models], active traction control system [four-wheel drive models], vehicle stability control system |
| 53 |
|
30A |
(AM2) Starter system, "IGN", "GAUGE", "STA NO.2" and "SRS" fuses |
| 54 |
|
50A |
(ABS SOL) Anti-lock brake system, traction control system [two-wheel drive models], active traction control system [four-wheel drive models], vehicle stability control system |
| 56 |
|
140A |
(ALT) All components in "AM2", "ALT-S", "DR/LCK", "TRN-HAZ", "HORN", "RADIO NO.2", "EFI", "TOWING", "ABS MTR", "ABS SOL", "HEATER" and "ETCS" fuses |
| 57 |
|
60A |
(HEATER) Air conditioning system |
