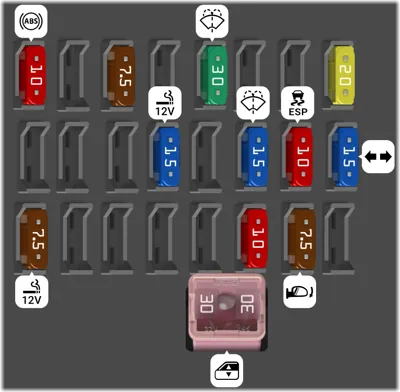

(TOWING TAIL) Luces del remolque |
| - |
|
|
AUX LP |
| - |
|
|
STA |
| - |
|
|
(DEFOG) Desempañador trasero |
| - |
|
|
(MG CLT) Embrague magnético de A/C |
| - |
|
|
(HEATER) Sistema de aire acondicionado |
| - |
|
|
OFFROAD LP |
| - |
|
|
(RADIO NO.1) Radio y sistema de audio |
| - |
|
|
HEAD (LO LH) |
| - |
|
|
HEAD (HI LH) |
| - |
|
|
(FUEL PUMP) Bomba de combustible |
| - |
|
|
A/F HEATER |
| - |
|
|
(DOME) Luz de domo y luz interior |
| - |
|
|
(EFI) Sistema de inyección de combustible multipuerto |
| - |
|
|
C/OPN |
| - |
|
|
STOP LP CTRL |
| - |
|
|
(HEAD) Faros |
| 1 |
|
10A |
(SPARE) Spare fuse |
| 2 |
|
15A |
(SPARE) Spare fuse |
| 3 |
|
15A |
(TOWING TAIL) Trailer lights |
| 4 |
|
15A |
(OFFROAD LP) Offroad lamp |
| 5 |
|
10A |
(STOP) Stop lights, high mounted stoplight, anti-lock brake system, traction control system, active traction control system, vehicle stability control system, "AUTO LSD" system, multiport fuel injection system/sequential multiport fuel injection system, shift lock system |
| 6 |
|
15A |
(AUX LP) Driving lamp |
| 7 |
|
7.5A |
(OBD) On-board diagnosis system |
| 8 |
|
10A |
(HEAD (LO RH)) Right-hand headlight (low beam) (vehicles with daytime running light), right-hand headlight (vehicles without daytime runnin light) |
| 9 |
|
10A |
(HEAD (LO LH)) Left-hand headlight (low beam) (vehicles with daytime running light), left-hand headlight (vehicles without daytime running light) |
| 10 |
|
10A |
(HEAD (HI RH)) Right-hand headlight (high beam) |
| 11 |
|
10A |
(HEAD (HI LH)) Left-hand headlight (high beam) |
| 12 |
|
10A |
(EFI NO.2) Multiport fuel injection system/sequential multiport fuel injection system |
| 13 |
|
7.5A |
(DRL) Daytime running light system |
| 14 |
|
30A |
(DEFOG) Back window defogger |
| 15 |
|
7.5A |
(DEFOG NO.2) Multiport fuel injection system/sequential multiport fuel injection system |
| 16 |
|
10A |
(DOME) Interior light, luggage compartment light, clock, accessormeter, meter and gauge |
| 17 |
|
20A |
(RADIO NO.1) Audio system |
| 18 |
|
10A |
(ECU-B) Air conditioning system, multiplex communication system, SRS airbag system, front passenger occupant classification system |
| 19 |
|
7.5A |
(ALT-S) Charging system |
| 20 |
|
10A |
(HORN) Horn |
| 21 |
|
15A |
(A/F HEATER) Multiport fuel injection system/sequential multiport fuel injection system |
| 22 |
|
15A |
(TRN-HAZ) Turn signal lights, emergency flashers |
| 23 |
|
10A |
(ETCS) Multiport fuel injection system/sequential multiport fuel injection system, electronic throttle control system |
| 24 |
|
20A |
(EFI) "EFI NO.2" fuse, Multiport fuel injection system/sequential multiport fuel injection system |
| 25 |
|
20A |
(DR/LCK) Door lock system, multiplex communication system |
| 26 |
|
15A |
(TOWING) Towing converter |
| 27 |
|
20A |
(RADIO No.2) Audio system |
| 39 |
|
50A |
(AM1) "ACC", "ECU-IG", "IG1", "PR WSH", "FR WIP-WSH", "4WD/ DIFF" and "STA" fuses |
| 40 |
|
50A |
(J/B) "TAIL", "PWR OUTLET", "POWER" |
| 41 |
|
40A |
(ABS MTR) Anti-lock brake system, vehicle stability control system traction control system, active traction control system, "AUTO LSD" system |
| 42 |
|
30A |
(AM2) "IGN" and "GAUGE" fuses, multiport fuel injection system/sequential multiport fuel injection system, starting system |
| 43 |
|
30A |
(ABS SOL) Anti-lock brake system, vehicle stability control system, traction control system, active traction control system, "AUTO LSD" system |
| 46 |
|
120A |
(ALT) "AM1", "AC 115V", "DEFOG", "DEFOG NO.2", "STOP", "OBD", "J/B", "TOWING TAIL", "AUX LP" and "OFFROAD LP" fuses |
| 47 |
|
60A |
(HEATER) Air conditioning system |
