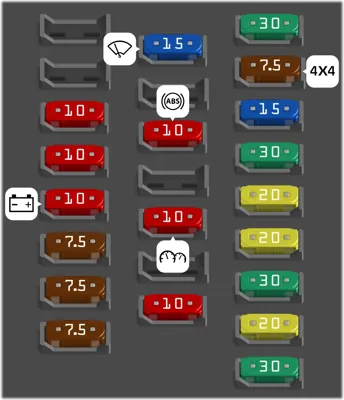

Caja de fusibles del lado del pasajero
| N° | A | Descripción | |
|---|---|---|---|
| 3 | 10A | (LH ECU-IG) Adaptive front lighting system, multiplex communication system, power rear seat, power slide door | |
| 4 | 10A | (SEAT HTR LH) Seat heater LH | |
| 5 | 10A | (GAUGE NO.2) Charging system, automatic transmission system, backup lights, Toyota parking assist system | |
| 6 | 7.5A | (STP RR) No circuit | |
| 7 | 7.5A | (STP HI MT) No circuit | |
| 8 | 7.5A | (STP RL) No circuit | |
| 9 | 15A | (RR WIP) Windshield wipers and washer, rear window wiper and washer, headlight cleaner | |
| 11 | 10A | (GAUGE NO.1) Anti-lock brake system, vehicle stability control system, adaptive front lighting system, electric cooling fan, Toyota parking assist system, headlight cleaner | |
| 13 | 10A | (PANEL) Instrument panel lights, Toyota parking assist system | |
| 15 | 10A | (TAIL) Front fog lights, tail lights, position lights, license plate lights | |
| 16 | 30A | (WELCAB) No circuit | |
| 17 | 7.5A | (4WD) No circuit | |
| 18 | 15A | (AC INV) No circuit | |
| 19 | 30A | (DR LOCK) Multiplex communication system | |
| 20 | 20A | (P/W FL) Power windows | |
| 21 | 20A | (S/R) Rear sunshade | |
| 22 | 30A | (PSD LH) Power slide door | |
| 23 | 20A | (P/W RL) Power windows | |
| 24 | 30A | (PBD) No circuit |

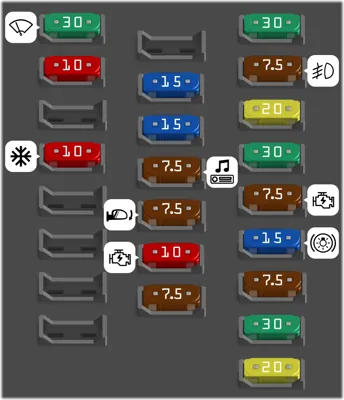

Caja de fusibles del lado del conductor
| N° | A | Descripción | |
|---|---|---|---|
| 1 | 30A | (FR WIP) Windshield wipers and washer | |
| 2 | 10A | (SEAT HTR RH) Seat heater RH | |
| 3 | - | (EMPTY) Vacío | |
| 4 | 10A | (RH ECU-IG) Vehicle stability control system, air conditioning system, Toyota parking assist system, automatic transmission system, electric power steering system, power slide door, rear power sunshade, shift lock system, turn signal flashers, emergency flashers, vanity lights, multiplex communication system | |
| 5 | - | (EMPTY) Vacío | |
| 6 | - | (EMPTY) Vacío | |
| 7 | - | (EMPTY) Vacío | |
| 8 | - | (EMPTY) Vacío | |
| 9 | - | (EMPTY) Vacío | |
| 10 | 15A | (P/POINT) Power outlet | |
| 11 | 15A | (CIG) Cigarette lighter | |
| 12 | 7.5A | (RAD NO.2) Audio system, rear seat entertainment system | |
| 13 | 7.5A | (ECU-ACC) Power rear view mirrors, shift lock system | |
| 14 | 10A | (IGN) Multiport fuel injection system / sequential multiport fuel injection system, SRS airbag system, multiplex communication system | |
| 15 | 7.5A | (MET) Gauges and meters | |
| 16 | 30A | (PSB) No circuit | |
| 17 | 7.5A | (RR FOG) No circuit | |
| 18 | 20A | (P/W FR) Power windows | |
| 19 | 30A | (P/SEAT RH) Power seat | |
| 20 | 7.5A | (AM 1) Starting system | |
| 21 | 15A | (STOP) Stop lights, high mounted stoplight, automatic transmission system, shift lock control system, multiport fuel injection system / sequential multi-port fuel injection system, antilock brake system, vehicle stability control system | |
| 22 | 7.5A | (OBD) On-board diagnosis system | |
| 23 | 30A | (PSD RH) Power slide door | |
| 24 | 20A | (P/W RR) Power windows |
Panel de fusibles del motor (Caja de fusibles A)
| N° | A | Descripción | |
|---|---|---|---|
| - | EXTRACTOR DE FUSIBLES | ||
| - | (DEF) | ||
| - | (ST) | ||
| - | (IG2) | ||
| - | (A/F) | ||
| - | (BRAKE LP) | ||
| - | (EFI MAIN) | ||
| - | (C/OPN) | ||
| - | (F/PMP) | ||
| 1 | 30A | (ABS NO.2) Actuador VSC | |
| 2 | 30A | (DEF) Desempañador de la luneta trasera | |
| 2 | 20A | (DEF) Desempañador de la luneta trasera | |
| 3 | 20A | (EFI) EFI | |
| 4 | 15A | (CAPACITOR) Sistema híbrido | |
| 5 | 10A | (ECU-B) Puerta corredera eléctrica | |
| 6 | 7.5A | (DOME) Luces interiores | |
| 7 | 15A | (RAD NO.1) Sistema de navegación | |
| 8 | 10A | (MIR HTR) Calefactor de espejos | |
| 9 | 10A | (ABS MAIN1) Sistema de frenos | |
| 10 | 10A | (ABS MAIN2) Sistema de frenos | |
| 11 | 10A | (ETC-S) EFI | |
| 12 | 7.5A | (AM2 NO.2) ECU de la carrocería | |
| 12 | 10A | (AM2 NO.2) ECU de la carrocería | |
| 13 | 15A | (TRN HAZ) Señal de giro, luces de emergencia | |
| 14 | 15A | (IG2) Inyección | |
| 15 | 15A | (ABS MAIN3) Sistema de frenos | |
| 15 | 30A | (AM2 NO.1) Sistema de frenos | |
| 16 | 30A | (FR DOOR) ECU de la carrocería | |
| 17 | 10A | (A/C W/P) Aire acondicionado | |
| 17 | 30A | (A/F) | |
| 18 | 80A | (EPS) | |
| 19 | 50A | (ABS NO.1) | |
| 20 | 30A | (ST) | |
| 22 | PIN CORTO | ||
| 23 | 5A | ST | |
| 24 | F/B ALT | ||
| 25 | ALT | ||
| 26 | F/B BATT | ||
| 27 | RH R/B BATT | ||
| 29 | RH R/B ALT | ||
| 30 | RH-MAIN-JB | ||
| 31 | LH-MAIN-JB | ||
| 32 | SUB R/B |
Caja de fusibles en el motor (Caja tipo B)
| N° | A | Descripción | |
|---|---|---|---|
| - | DIM | ||
| - | H-LP | ||
| - | FAN NO.2 | ||
| - | FAN NO.3 | ||
| - | FAN NO.1 | ||
| - | BOCINA | ||
| - | S/HORN | ||
| - | FOG | ||
| 1 | 10A | (HORN) BOCINA | |
| 2 | 20A | (STRG LCK) BLOQUEO DE DIRECCIÓN | |
| 3 | 30A | (AMP NO.2) AMPLIFICADOR DE AUDIO | |
| 4 | 30A | (AMP NO.1) AMPLIFICADOR DE AUDIO | |
| 5 | 7.5A | (ECU-B3) ECU INTELIGENTE | |
| 6 | 7.5A | (ECU-B2) AIRE ACONDICIONADO | |
| 7 | 10A | (S/HORN) S/HORN | |
| 9 | 20A | (DEICER) DESCONGELADOR DE LIMPIAPARABRISAS DELANTERO | |
| 10 | 20A | (FOG) LUCES ANTINIEBLA DELANTERAS | |
| 11 | 30A | WEL CAB | |
| 12 | 30A | H-LP CLN | |
| 13 | 50A | PTC NO. 3 | |
| 14 | 50A | PTC NO. 2 | |
| 15 | 50A | PTC NO. 1 | |
| 16 | 50A | CDS FAN | |
| 17 | 50A | RD 1 FAN | |
| 18 | 15A | (H-LP RH *1) FARO DERECHO (LUZ ALTA) | |
| 18 | 15A | (H-LP RL *2) FARO DERECHO (LUZ BAJA) | |
| 19 | 15A | (H-LP LH *1) FARO IZQUIERDO (LUZ ALTA) | |
| 19 | 15A | (H-LP LL *2) FARO IZQUIERDO (LUZ BAJA) | |
| 20 | 15A | (H-LP RL *1) FARO DERECHO (LUZ BAJA) | |
| 21 | 15A | (H-LP LL *1) FARO IZQUIERDO (LUZ BAJA) | |
| 21 | 15A | (H-LP RH *2) FARO DERECHO (LUZ ALTA) | |
| 22 | 20A | (H-LP HI NO.2 *1) LUZ ALTA AUTOMÁTICA | |
| 22 | 15A | (H-LP LH *2) FARO IZQUIERDO (LUZ ALTA) |
