Caja de fusibles en el motor (Motor a gasolina: 1GR-FE, 2TR-FE)
| N° | A | Descripción | |
|---|---|---|---|
| - | (DIMMER) Luces del panel de instrumentos | ||
| - | (H-LP) Faros | ||
| - | (GLOW) Calefactor de bujías incandescentes | ||
| - | FUEL PMP/ AIR PMP HTR | ||
| - | (A/F HTR) Sensor de relación aire-combustible | ||
| - | (STOP / CDS FAN) Luces de freno; Ventilador del condensador de AC | ||
| - | (ST NO.1) Sistema de arranque | ||
| - | (HORN) Bocina | ||
| - | (INJ) Inyectores de combustible | ||
| 1 | (ABS NO.1) ABS [w/ VSC]; Brake Assist; Hill-Start Assist Control; TRC; VSC. | ||
| 2 | (ABS NO.2) ABS [w/ VSC]; Brake Assist; Hill-Start Assist Control; TRC; VSC. | ||
| 3 | (R/B I/P-ALT) Power Source. | ||
| 4 | 20A | (INV) Power Outlet [w/ Voltage Inverter]. | |
| 5 | 10A | (ECU-ALT NO.1) Back Door Opener [w/ Power Back Door]; Double Locking; Illumination; Power Back Door; Taillight. | |
| 6 | 15A | (P/OUTLET NO.2) Power Outlet. | |
| 7 | 10A | (STOP) ABS [w/ VSC]; Brake Assist; Cruise Control; Dynamic Radar Cruise Control; ECT and A/T Indicator; Engine Control; Entry & Start System; Hill-Start Assist Control; Immobiliser System; Pre-Collision System; Shift Lock; Starting; Steering Lock; Stop Light; TRC; VSC; Wireless Door Lock Control. | |
| 8 | 10A | (STRG HTR) Heated Steering Wheel System. | |
| 9 | 10A | (4WD-ALT) 4WD; ABS [w/ VSC]; Brake Assist; Hill-Start Assist Control; TRC; VSC. | |
| 10 | 50A | (R/B FLOOR-ALT) Power Source. | |
| 11 | 140A | (ALT) Charging; Entry & Start System; Immobiliser System; Power Window; Starting; Steering Lock; Wireless Door Lock Control. | |
| 12 | 10A | (H-LP RH-LO) Headlight. | |
| 13 | 10A | (H-LP LH-LO) Headlight; Headlight Beam Level Control [Automatic]. | |
| 14 | 10A | (H-LP RH-HI) Headlight. | |
| 15 | 10A | (H-LP LH-HI) Headlight. | |
| 16 | (P/SEAT(P)) Power Seat [Front Passenger's Seat]. | ||
| 17 | (PTC HTR NO.2) Air Conditioner [Automatic A/C]. | ||
| 18 | (CLR RR) Air Conditioner. | ||
| 19 | (P/SEAT(D)) Power Seat [Driver's Seat]. | ||
| 20 | (PBD) Back Door Closer; Back Door Opener; Power Back Door. | ||
| 21 | (PTC HTR NO.1) Air Conditioner [Automatic A/C]. | ||
| 23 | 30A | (CDS FAN/PTC HTR NO.3) Air Conditioner. | |
| 24 | 7.5A | (S-HORN) Entry & Start System; Immobiliser System; Starting; Steering Lock; Theft Deterrent; Wireless Door Lock Control. | |
| 25 | 7.5A | (MAYDAY) Option Connector; Telematics System. | |
| 26 | 10A | (HORN) Entry & Start System; Horn; Immobiliser System; Starting; Steering Lock; Theft Deterrent; Wireless Door Lock Control. | |
| 27 | 7.5A | (EFI-B) Cruise Control; Dynamic Radar Cruise Control; ECT and A/T Indicator; Engine Control. | |
| 28 | 7.5A | (ALT-S/ICS) Charging. | |
| 28 | 7.5A | (ALT-S/ICS/AIR PMP HTR) Cruise Control [2TR-FE]; ECT and A/T Indicator [2TR-FE]; Engine Control [2TR-FE]. | |
| 29 | 7.5A | (SMART) Entry & Start System; Immobiliser System; Starting; Steering Lock; Wireless Door Lock Control. | |
| 30 | 10A | (ECU-B NO.3) Air Conditioner [Automatic A/C]; Entry & Start System; Immobiliser System; Multiplex Communication System [CAN]; Starting; Steering Lock; Theft Deterrent; Wireless Door Lock Control. | |
| 31 | 20A | (A/F HTR) Cruise Control; ECT and A/T Indicator; Engine Control. | |
| 32 | 10A | (STRG LOCK/AM2 NO.1) Cruise Control [2TR-FE]; ECT and A/T Indicator [2TR-FE]; Engine Control [2TR-FE]; Entry & Start System; Immobiliser System; Starting; Steering Lock; Wireless Door Lock Control. | |
| 33 | 15A | (INJ) Combination Meter; Cruise Control; ECT and A/T Indicator; Engine Control; Ignition. | |
| 34 | 10A | (ECU-B NO.2) Entry & Start System; Immobiliser System; Starting; Steering Lock; Wireless Door Lock Control. | |
| 35 | 15A | (ECU-B NO.4) Automatic Light Control; Back Door Closer; Back Door Opener; Door Lock Control; Entry & Start System; Front Fog Light; Illumination; Immobiliser System; Interior Light; Power Window [Jam Protection]; Rear Fog Light; Starting; Steering Lock; Taillight; Theft Deterrent; Wireless Door Lock Control. | |
| 37 | 30A | (D/C CUT) Power Source. | |
| 42 | 60A | (J/B-B) Power Source. | |
| 43 | 10A | (DOME) Entry & Start System; Immobiliser System; Interior Light; Starting; Steering Lock; Theft Deterrent; Wireless Door Lock Control. | |
| 44 | 20A | (RADIO) Audio System; Navigation System; Rear View Monitor System. | |
| 45 | 10A | (ECU-B NO.1) 4WD; ABS [w/ VSC]; Air Conditioner [Automatic A/C]; Audio System; Back Door Opener; Blind Spot Monitor System; Brake Assist; Charging; Clock; Combination Meter; Cruise Control; Door Lock Control; Dynamic Radar Cruise Control; ECT and A/T Indicator; Engine Control; Entry & Start System; Headlight; Headlight Beam Level Control [Automatic]; Hill-Start Assist Control; Illumination; Immobiliser System; Interior Light; Key Reminder; Lane Departure Alert; Light Reminder; Navigation System; Panoramic View Monitor System; Power Back Door; Pre-Collision System; Rear View Monitor System; Seat Belt Warning; SRS; Starting; Steering Lock; Taillight; Telematics System; Theft Deterrent; TOYOTA Parking Assist-Sensor System; TRC; Turn Signal and Hazard Warning Light; VSC; Wireless Door Lock Control. | |
| 46 | (BBC NO.3) Stop & Start System [2TR-FE] [From May 2020 Production] [TMT Made, TMMIN Made]. | ||
| 48 | (BBC NO.1) Stop & Start System [2TR-FE] [From May 2020 Production] [TMT Made, TMMIN Made]. | ||
| 49 | (ST NO.1) Entry & Start System; Immobiliser System; Starting; Steering Lock; Wireless Door Lock Control. | ||
| 50 | (BBC NO.2/AMP) Audio System; Navigation System; Rear View Monitor System. | ||
| 52 | 50A | (AIR PMP) Cruise Control [2TR-FE]; ECT and A/T Indicator [2TR-FE]; Engine Control [2TR-FE]. | |
| 53 | 40A | (H-LP MAIN) Automatic Light Control; Headlight; Headlight Beam Level Control [Automatic]. | |
| 54 | 7.5A | (ODS) SRS. |
Caja de fusibles en el motor (Motor diésel: 1GD-FTV, 2GD-FTV, 1KD-FTV, 2KD-FTV, 5L-E)
| N° | A | Descripción | |
|---|---|---|---|
| - | (DIMMER) Luces del panel de instrumentos | ||
| - | (H-LP) Faros | ||
| - | (ST NO.1) Sistema de arranque | ||
| - | (GLOW) Calefactor de bujías incandescentes | ||
| - | (STOP/ CDS FAN) Luces de freno; Ventilador del condensador de AC | ||
| - | (ST NO.2 [1GD-FTV, 2GD-FTV]) Sistema de arranque | ||
| - | (HORN) Bocina | ||
| - | (EDU [1GD-FTV, 2GD-FTV, 1KD-FTV, 2KD-FTV, 5L-E]) Sistema de control de emisiones | ||
| 1 | (ABS NO.1) ABS [w/ VSC, w/o VSC]; Brake Assist; Downhill Assist Control; Hill-Start Assist Control; TRC; VSC. | ||
| 2 | (ABS NO.2) ABS [w/ VSC, w/o VSC]; Brake Assist; Downhill Assist Control; Hill-Start Assist Control; TRC; VSC. | ||
| 3 | (R/B I/P-ALT) Power Source. | ||
| 3 | (R/B I/P-ALT) Power Source. | ||
| 4 | 20A | (INV) Power Outlet [w/ Voltage Inverter]. | |
| 5 | 10A | (ECU-ALT NO.1) Back Door Opener [w/ Power Back Door]; Double Locking; Illumination; Power Back Door; Taillight. | |
| 6 | 15A | (P/OUTLET NO.2) Power Outlet. | |
| 7 | 10A | (STOP) ABS [w/ VSC, w/o VSC]; Brake Assist; Cruise Control; Downhill Assist Control; Dynamic Radar Cruise Control; ECT and A/T Indicator; Engine Control; Entry & Start System; Hill-Start Assist Control; Immobiliser System; Pre-Collision System; Shift Lock; Starting; Steering Lock; Stop Light; TRC; VSC; Wireless Door Lock Control. | |
| 8 | 10A | (STRG HTR) Heated Steering Wheel System. | |
| 9 | 10A | (4WD-ALT) 4WD; ABS [w/ VSC]; ABS [w/o VSC]; Brake Assist; Downhill Assist Control; Hill-Start Assist Control; Rear Differential Lock; TRC; VSC. | |
| 10 | 50A | (R/B FLOOR-ALT) Power Source. | |
| 11 | 140A | (ALT) Charging; Entry & Start System; Immobiliser System; Power Window; Starting; Steering Lock; Wireless Door Lock Control. | |
| 12 | 10A | (H-LP RH-LO) Headlight. | |
| 13 | 10A | (H-LP LH-LO) Headlight; Headlight Beam Level Control [Automatic]. | |
| 14 | 10A | (H-LP RH-HI) Headlight. | |
| 15 | 10A | (H-LP LH-HI) Headlight. | |
| 16 | (P/SEAT(D)) Power Seat [Driver's Seat]. | ||
| 17 | (PTC HTR NO.2) Air Conditioner [Automatic A/C]. | ||
| 18 | (CLR RR) Air Conditioner. | ||
| 19 | (P/SEAT(P)) Power Seat [Front Passenger's Seat]. | ||
| 20 | (PBD) Back Door Closer; Back Door Opener; Power Back Door. | ||
| 21 | (PTC HTR NO.1) Air Conditioner [Automatic A/C]. | ||
| 23 | 30A | (CDS FAN/PTC HTR NO.3) Air Conditioner. | |
| 24 | 7.5A | (S-HORN) Entry & Start System; Immobiliser System; Starting; Steering Lock; Theft Deterrent; Wireless Door Lock Control. | |
| 25 | 7.5A | (MAYDAY) Option Connector; Telematics System. | |
| 26 | 10A | (HORN) Entry & Start System; Horn; Immobiliser System; Starting; Steering Lock; Theft Deterrent; Wireless Door Lock Control. | |
| 27 | 7.5A | (EFI-B) Cruise Control; Dynamic Radar Cruise Control; ECT and A/T Indicator; Engine Control. | |
| 28 | 7.5A | (ALT-S/ICS) Charging. | |
| 29 | 7.5A | (SMART) Entry & Start System; Immobiliser System; Starting; Steering Lock; Wireless Door Lock Control. | |
| 30 | 10A | (ECU-B NO.3) Air Conditioner [Automatic A/C]; Cruise Control [1KD-FTV]; ECT and A/T Indicator [1KD-FTV]; Engine Control [1KD-FTV, 2KD-FTV]; Entry & Start System; Immobiliser System; Multiplex Communication System [CAN]; Starting; Steering Lock; Theft Deterrent; Wireless Door Lock Control. | |
| 31 | 25A | (EDU) Cruise Control; ECT and A/T Indicator; Engine Control. | |
| 32 | 10A | (STRG LOCK/AM2 NO.1) Cruise Control; ECT and A/T Indicator; Engine Control; Entry & Start System; Immobiliser System; Starting; Steering Lock; Wireless Door Lock Control. | |
| 33 | 15A | (INJ) Combination Meter. | |
| 33 | 30A | (ST NO.2) Entry & Start System; Immobiliser System; Starting; Steering Lock; Wireless Door Lock Control. | |
| 34 | 10A | (ECU-B NO.2) Entry & Start System; Immobiliser System; Starting; Steering Lock; Wireless Door Lock Control. | |
| 35 | 15A | (ECU-B NO.4) Automatic Light Control; Back Door Closer; Back Door Opener; Door Lock Control; Entry & Start System; Front Fog Light; Illumination; Immobiliser System; Interior Light; Power Window [Jam Protection]; Rear Fog Light; Starting; Steering Lock; Taillight; Theft Deterrent; Wireless Door Lock Control. | |
| 35 | 25A | (ECU-B NO.4) [Before Jan. 2023 Production (TSAM Made, TMEE Made)] Automatic Light Control; Back Door Closer; Back Door Opener; Door Lock Control; Entry & Start System; Front Fog Light; Illumination; Immobiliser System; Interior Light; Power Window [Jam Protection]; Rear Fog Light; Starting; Steering Lock; Taillight; Theft Deterrent; Wireless Door Lock Control. | |
| 36 | 20A | (NOX PM MAIN) Cruise Control; ECT and A/T Indicator; Engine Control. | |
| 37 | 30A | (D/C CUT) Power Source. | |
| 41 | 80A | (GLOW) Cruise Control; ECT and A/T Indicator; Engine Control. | |
| 42 | 60A | (J/B-B) Power Source. | |
| 43 | 10A | (DOME) Entry & Start System; Immobiliser System; Interior Light; Starting; Steering Lock; Theft Deterrent; Wireless Door Lock Control. | |
| 44 | 20A | (RADIO) Audio System; Navigation System; Rear View Monitor System. | |
| 45 | 10A | (ECU-B NO.1) 4WD; ABS [w/ VSC]; ABS [w/o VSC]; Air Conditioner [Automatic A/C]; Audio System; Back Door Closer; Back Door Opener; Blind Spot Monitor System; Brake Assist; Charging; Clock; Combination Meter; Cruise Control; Door Lock Control; Downhill Assist Control; Dynamic Radar Cruise Control; ECT and A/T Indicator; Engine Control; Entry & Start System; Headlight; Headlight Beam Level Control [Automatic]; Hill-Start Assist Control; Illumination; Immobiliser System; Interior Light; Key Reminder; Lane Departure Alert; Light Reminder; Navigation System; Panoramic View Monitor System; Power Back Door; Power Steering; Pre-Collision System; Rear Differential Lock; Rear View Monitor System; Seat Belt Warning; SRS; Starting; Steering Lock; Stop & Start System; Taillight; Telematics System; Theft Deterrent; Tire Pressure Warning System; TOYOTA Parking Assist-Sensor System; TRC; Turn Signal and Hazard Warning Light; VSC; Wireless Door Lock Control. | |
| 46 | (BBC NO.3) Stop & Start System. | ||
| 48 | (BBC NO.1) Stop & Start System. | ||
| 49 | (ST NO.1) Entry & Start System; Immobiliser System; Starting; Steering Lock; Wireless Door Lock Control. | ||
| 50 | (BBC NO.2/AMP) Audio System; Navigation System; Rear View Monitor System. | ||
| 52 | 30A | (DCU-MAIN) Cruise Control; ECT and A/T Indicator; Engine Control. | |
| 53 | 40A | (H-LP MAIN) Automatic Light Control; Headlight; Headlight Beam Level Control [Automatic]. | |
| 54 | 7.5A | (ODS) SRS. |

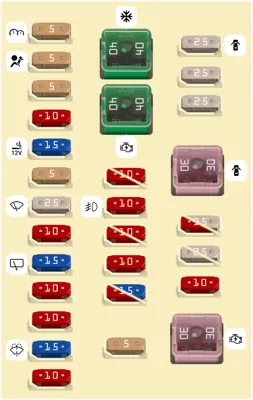

Panel de fusibles interior
| N° | A | Descripción | |
|---|---|---|---|
| 1 | 5A | (METER) Cuadro de instrumentos | |
| 2 | 5A | (A/BAG) Airbag | |
| 3 | 5A | (IG2 NO.3) Protege varios circuitos | |
| 4 | 10A | (SFT LOCK-ACC) ECU del sistema de bloqueo del cambio de caja automática | |
| 5 | 15A | (P/OUTLET NO.1) Encendedor de cigarrillos / enchufes de corriente | |
| 6 | 5A | (IG2 NO.2) Protege varios circuitos | |
| 7 | 25A | (WIPER) Limpiaparabrisas | |
| 8 | 10A | (IG1 NO.1) Protege varios circuitos | |
| 9 | 15A | (WIPER RR) Limpiaparabrisas trasero | |
| 10 | 10A | (IG1 NO.3) Protege varios circuitos | |
| 11 | 10A | (IG1 NO.4) Protege varios circuitos | |
| 12 | 15A | (WASHER) Limpiaparabrisas | |
| 13 | 10A | (IG1 NO.2) Protege varios circuitos | |
| 14 | 10A | (TAIL [Gasoline motor: 1GR-FE, 2TR-FE][Diesel motor: 1KD-FTV, 2KD-FTV, 5L-E]) Luces traseras | |
| 14 | 10A | ECU-ALT NO.2 [Diesel motor: 1GD-FTV, 2GD-FTV] | |
| 15 | 10A | FOG FR/DRL | |
| 16 | 10A | ECU ALT NO.2 [Gasoline motor: 1GR-FE, 2TR-FE][Diesel motor: 1KD-FTV, 2KD-FTV, 5L-E] | |
| 16 | 10A | ( TAIL [Diesel motor: 1GD-FTV, 2GD-FTV]) Luces traseras | |
| 17 | 10A | (OBD) Diagnóstico a bordo | |
| 18 | 10A | EFI NO.1 [From May 2020 Production until Sep. 2020 Production (TSAM Made)] [From May 2020 Production (TMEE Made)] // EFI NO.1 [Gasoline motor: 1GR-FE, 2TR-FE][From May 2020 Production (TMT Made, TMMIN Made)][From Sep. 2020 Production (TSAM Made)][AVA Made] | |
| 18 | 15A | (EFI NO.1 [Diesel motor: 1GD-FTV, 2GD-FTV][From May 2020 Production (TMT Made, TMMIN Made)][From Sep. 2020 Production (TSAM Made)]) Sistema de inyección de combustible multipuerto | |
| 19 | 5A | (IG2 NO.1) Protege varios circuitos | |
| 20 | 25A | (DOOR NO.2) Sistema de cierre de puertas eléctrico | |
| 21 | 25A | (DOOR R/L) Puerta trasera izquierda | |
| 22 | 25A | (DOOR R/R) Puerta trasera derecha | |
| 23 | 10A | (ETCS [Gasoline motor: 1GR-FE, 2TR-FE]) Sistema de control electrónico del acelerador | |
| 23 | 25A | (EFI-MAIN NO.1 [Diesel motor: 1GD-FTV, 2GD-FTV]) Sistema de inyección de combustible multipuerto | |
| 24 | 25A | (EFI MAIN NO.1 [Gasoline motor: 1GR-FE, 2TR-FE] [Diesel motor: 1KD-FTV, 2KD-FTV, 5L-E]) Sistema de inyección de combustible multipuerto | |
| 24 | 25A | (EFI-MAIN NO.2 [Diesel motor: 1GD-FTV, 2GD-FTV]) Sistema de inyección de combustible multipuerto | |
| 25 | 10A | (TURN&HAZ) Luces de giro o guiño; Luz de emergencia o balizas | |
| 26 | 40A | (HTR) Sistema de aire acondicionado | |
| 27 | 40A | (AM1) Sistema de arranque | |
| 28 | 30A | (DOOR NO.1) Sistema de cierre de puertas eléctrico | |
| 29 | 30A | (AM2 NO.2) Sistema de arranque |
Relé del tablero de instrumentos n.º 4
| N° | A | Descripción | |
|---|---|---|---|
| - | (HTR) Sistema de aire acondicionado | ||
| - | (IG1 NO.2) Protege varios circuitos | ||
| - | P/OUTLET FR | ||
| - | (A/C COMP) Compresor de aire acondicionado | ||
| 1 | 5A | (ACC) Protege varios circuitos accesorios | |
| 2 | 10A | (A/C) Aire acondicionado | |
| 3 | 10A | (EFI NO.3 ) Sistema de inyección de combustible multipuerto | |
| 4 | 7.5A | STA/WIPER-S | |
| 5 | 15A | (IG1 NO.6 ) Protege varios circuitos | |
| 6 | 20A | (4WD-IG) Sistema de tracción en las cuatro ruedas | |
| 7 | 15A | S/HTR / S/VENT | |
| 8 | 15A | (IG1 NO.5) Protege varios circuitos |
Relé del tablero de instrumentos n.º 6
| N° | A | Descripción | |
|---|---|---|---|
| - | DCU-MAIN | ||
| - | P/OUTLET RR Relay | ||
| - | NOX PM | ||
| - | (P/OUTLET Relay ) Encendedor de cigarrillos / enchufes de corriente | ||
| - | (FOG RR Relay) Luces antiniebla traseras | ||
| - | (INV) Toma de corriente (inversor DC/AC) | ||
| - | (DEF) Desempañador trasero | ||
| 1 | 25A | DCU NO.1 | |
| 2 | 20A | DCU NO.2 | |
| 4 | 7.5A | DCU-B | |
| 5 | 10A | DEF-S | |
| 6 | 10A | (FOG RR) Luces antiniebla traseras | |
| 7 | 15A | (DEICER) Descongelador o desempañador | |
| 8 | 25A | (DEF) Desempañador trasero |
