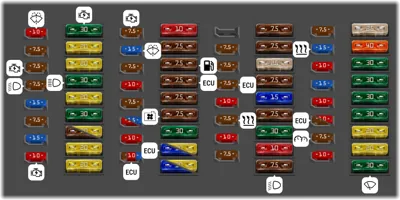

| 1 |
|
10A |
Windscreen washer pump |
| 2 |
|
7.5A |
On-board power supply control unit / Internal nutrition |
| 3 |
|
7.5A |
Ignition and starter switch |
| 4 |
|
7.5A |
Steering column switch unit / Low beam and light signal switch |
| 5 |
|
15A |
Automatic transmission control unit |
| 6 |
|
7.5A |
Battery monitoring control unit / On-board power supply control unit / Reference voltage |
| 7 |
|
15A |
On-board power supply control unit / Interior Monitoring System Switch (30G) / Front interior light (30G) / Central interior light (30G) / Ceiling light for front left door sill / Ceiling light for front right door sill / Rear left door sill light / Ceiling light for the threshold of the rear right door / Front side light, left (58L) / Front side light, right (58R) |
| 8 |
|
10A |
Ignition and starter switch |
| 9 |
|
30A |
Starter relay / Starter Starter relay 1 / Starter relay 2 / Starter |
| 10 |
|
20A |
Trailer recognition control unit |
| 11 |
|
20A |
Trailer recognition control unit |
| 12 |
|
30A |
High beam headlight relay / Bulb for left additional high beam headlight / Right additional high beam headlight bulb / Bulb for central left additional high beam headlight / Bulb for central right additional high beam headlight |
| 13 |
|
20A |
Trailer recognition control unit |
| 14 |
|
30A |
ABS control unit |
| 15 |
|
7.5A |
Coolant pump relay: Coolant after-run pump |
| 15 |
|
20A |
Additional heater control unit |
| 16 |
|
20A |
On-board power supply control unit / Direction indicator / Brake light |
| 17 |
|
20A |
On-board power supply control unit / Left fog light bulb / Right fog light bulb / Fuse 30 in fuse box C |
| 18 |
|
7.5A |
Starter relay / Onboard power supply control unit / Engine control unit / Interface for external use (T17j/4 and T17j/7) |
| 19 |
|
15A |
Windscreen wiper switch / Windscreen washer pump and headlight cleaning system switch / Windscreen washer pump |
| 20 |
|
7.5A |
Light switch / Brake light switch / Starter relay 1 Starter / relay 2 / |
| 21 |
|
10A |
Power steering control unit |
| 22 |
|
7.5A |
Interface for external use |
| 23 |
|
10A |
Lambda probe 1 before neutralizer: Lambda probe / Lambda probe heating element |
| 23 |
|
15A |
Lambda probe / Lambda probe heating element Lambda probe after neutralizer / Lambda probe heating element 1 after catalytic converter |
| 24 |
|
10A |
Fuel pressure regulator / Fuel metering valve / Oil level and temperature sensor / Electronically controlled engine cooling thermostat / EGR cooler changeover valve / EGR cooling bypass valve 2 / Cylinder head coolant circuit valve / Boost pressure control solenoid valve / Canister solenoid valve 1 Inlet / camshaft position adjuster valve 1 / Turbocharger bypass valve Inlet / manifold flap valve |
| 25 |
|
7.5A |
Coolant after-run pump |
| 25 |
|
10A |
Fuel pressure regulator / Fuel metering valve |
| 25 |
|
15A |
Engine control unit |
| 26 |
|
10A |
Interface for external use |
| 27 |
|
7.5A |
Air mass meter / Boost pressure control / solenoid valve EGR cooler changeover valve / Air mass meter / Boost pressure control solenoid valve Exhaust / gas flap valve / Exhaust gas recirculation cooler changeover valve / Air mass meter / Control unit 1 soot particle sensor / Control unit for driving dynamics control sensors / Soot Particle Sensor / Relay for reducing agent dosing system |
| 28 |
|
7.5A |
Clutch pedal switch / Fuel pump relay / Glow plug control unit |
| 29 |
|
7.5A |
Engine control unit / Onboard power supply control unit |
| 30 |
|
7.5A |
Interface for external use |
| 31 |
|
7.5A |
Coolant pump relay / Additional coolant pump relay / Radiator fan / Radiator fan control unit / Radiator fan |
| 32 |
|
30A |
Fuse 27 in fuse box C / Fuse 28 in fuse box C / Fuse 31 in fuse box C |
| 33 |
|
15A |
Ignition coil 1, 2, 3 & 4 with output stage |
| 33 |
|
20A |
Engine control unit |
| 34 |
|
15A |
NOx Sensor Control Unit: NOx sensor control unit / NOx sensor // Control unit 2 NOx sensors: NOx 2 sensor control unit / NOx sensor 2 |
| 34 |
|
20A |
Fuel pump control unit / Fuel lift pump |
| 36 |
|
7.5A |
Exterior mirror position adjuster |
| 37 |
|
7.5A |
Interface for external use |
| 38 |
|
7.5A |
Automatic transmission control unit / Selector lever sensors control unit / Engine control unit / Instrument cluster |
| 39 |
|
10A |
Airbag control unit / Front passenger airbag deactivation indicator lamp |
| 40 |
|
7.5A |
Heater and operating mode selector switch / ASR and ESP deactivation button / Drive program button / ABS control unit / Anti-theft alarm relay 1 / Steering column switch unit / Steering wheel angle sensor |
| 41 |
|
10A |
Headlight range control unit / Trailer detector control unit / Crankcase ventilation heating resistor / 8-pin connector -T8f- / 10-pin connector -T10s- / Left headlight range control actuator motor / Right headlight range control actuator motor / Automatic dimming interior rearview mirror / Left washer nozzle heating resistor / Right washer nozzle heating resistor |
| 42 |
|
7.5A |
ABS control unit / High pressure sender / Air mass meter / Oil level and temperature sender / Transfer case control unit / Normal mode indicator lamp on transfer case control panel / Diagnostic socket / Steering column switch unit / Cruise control switch |
| 43 |
|
7.5A |
Left seat heating button / Right seat heating button |
| 44 |
|
7.5A |
Interface for external use |
| 45 |
|
25A |
Seat heating control unit |
| 46 |
|
7.5A |
Interface for external use |
| 47 |
|
15A |
Interface for external use |
| 48 |
|
7.5A |
Interface for external use (T17k/4 and T17k/5) |
| 49 |
|
30A |
Fuse 19 in fuse box C – / Fuse 22 in fuse box C |
| 50 |
|
10A |
Start/stop button / Reversing light switch / Tachograph / Differential lock control unit / Parking aid control unit / Load platform light / 28-pin connector -T28a- / 28-pin connector -T28b- / Steering column switch unit / Spiral cable / Multifunction steering wheel control unit |
| 51 |
|
7.5A |
Steering column switch unit / Low beam and light signal switch |
| 52 |
|
7.5A |
Interface for external use |
| 53 |
|
15A |
Heater and operating mode selection switch / Air conditioning control unit / Fresh air fan control unit / Climatronic control unit |
| 54 |
|
10A |
Tachograph / Selector lever sensors control unit / Ignition key removal lock solenoid / Steering column switch unit / Steering wheel angle sensor |
| 55 |
|
15A |
On-board power supply control unit / Noise suppression filter / Heating element for outside mirror on driver's side / Heating element for exterior mirror, front passenger side |
| 56 |
|
10A |
Relay for reducing agent dosing system / Supply module for the reducing agent dosing system / Recovery tank |
| 57 |
|
7.5A |
Engine control unit |
| 57 |
|
10A |
Engine control unit |
| 58 |
|
7.5A |
Light switch / Main relay / Emergency call module and communication unit control unit / Instrument cluster |
| 59 |
|
10A |
Rain and light sensor / Anti-theft alarm sensor / Alarm siren / Electric fuel pump 2 relay / Tyre pressure monitoring control unit / Roof electronics control unit / Roof display module / Load platform light / Radio signal receiver for additional water heater / Reversing camera / Diagnostic socket / Additional water heater relay / Additional coolant pump relay / Circulation pump |
| 60 |
|
25A |
Electronic information system control unit 1 / Head unit / 8-pin connector -T8a- |
| 61 |
|
40A |
Interface for external use |
| 62 |
|
30A |
On-board power supply control unit / Rear window heating element / Rear window heating relay |
| 63 |
|
30A |
On-board power supply control unit / High tone signal / Low tone signal / Anti-theft alarm sound signal / Anti-theft alarm relay 1 / Interface for external use |
| 64 |
|
30A |
Driver's door control unit / Rear left door control unit [only for vehicles with left-hand drive] / Rear right door control unit [only for vehicles with right-hand drive] / |
| 65 |
|
30A |
Front passenger door control unit / Rear left door control unit [only for vehicles with right-hand drive] / Rear right door control unit [only for vehicles with left-hand drive] / On-board power supply control unit / Actuator for central locking of fuel filler flap / Driver's door central lock drive / Front passenger door central locking drive / Central locking drive rear left door / Central locking drive rear right door |
| 66 |
|
20A |
On-board power supply control unit / Rear left fog light bulb (NSL) / Rear right fog light bulb (NSL) / Headlight front left (56b) / Headlight front right (56a) / Left Reversing Light Bulb (RFL) / Right Reversing Light Bulb (RFL) |
| 67 |
|
20A |
On-board power supply control unit / Headlight front left (56a) / Headlight front right (56b) / Daytime running light bulb left (TFL) / Daytime running light bulb right (TFL) |
| 68 |
|
30A |
On-board power supply control unit / Windscreen wiper motor control unit / Windscreen wiper motor |
